| Type | High Functionality + Free Space Included |
| Model No | BQEF87301C3 |
| Color | White (Munsell symbol 10Y9/0.5) |

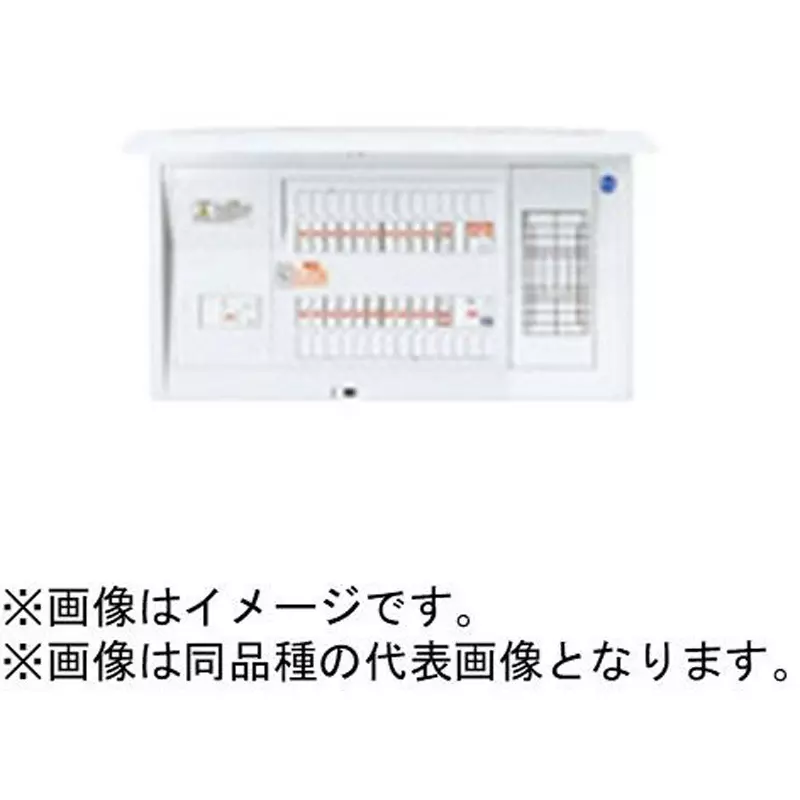

| Type of Product | Cosmo Panel |
Type |
High Functionality + Free Space Included |
Model No |
BQEF87301C3 |
Color |
White (Munsell symbol 10Y9/0.5) |
Type of Product |
Cosmo Panel |
Country of Origin |
Japan |
Material |
Plastic |
Specifications |
No retraction method (limiter space) |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Function |
Solar Power Generation System, Ecocute, Electric Water Heater, Ih Compatible |
Monotaro ID |
51390914 |
Import Country |
Direct Import from Japan |
No. of Circuits |
(AA Branch) 1, (Implementation) 30 |
Circuit space |
1 |
Main capacity (A) |
75 |
No. of Terminals |
12 |
Contents |
(2P1E 20 Amp)22, (2P2E 20 Amp 100 V)6, (2P2E 30 Amp 200 V)2 |
Chip Breaker |
For IH cooking heater: 30A, for EcoCute (branch type): 30A, for solar power generation connection: 30A |

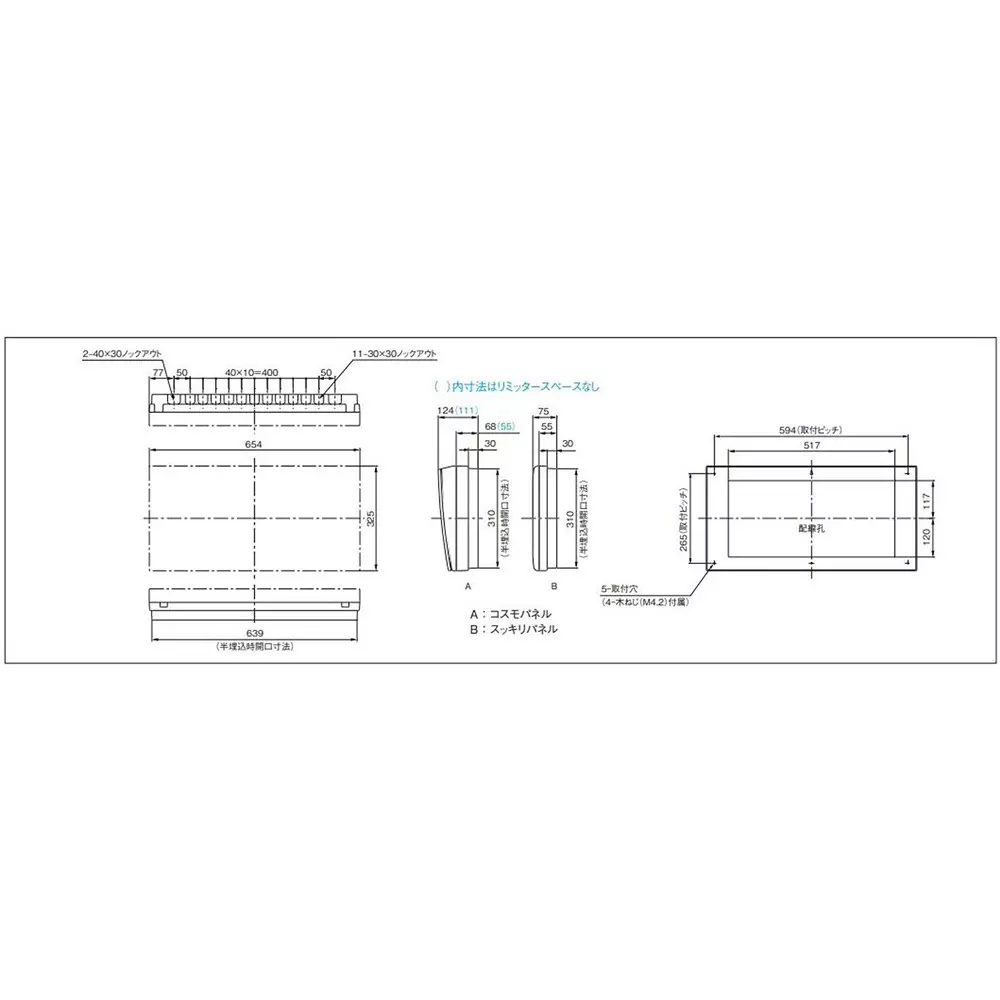

Semi-embedded dimensions (length x width x depth) (mm) |
310x639x30 |
Structure |
With Door, Both Exposed And Semi-Recessed Type |
Dimensions WxDxH (mm) |
325x654x111 mm |
Applicable Standard |
(Certified) Japan Wiring System Industry Association Residential Distribution Board Standard Compliant Product |
