| Type | Home distribution board |
| Model No | BQE87332B4 |
| Shape | Both exposed and semi-embedded type |
| Color | White |
Type |
Home distribution board |
Model No |
BQE87332B4 |
Shape |
Both exposed and semi-embedded type |
Color |
White |
Door |
Attached |
Type of Product |
Distribution Panel |
Country of Origin |
Japan |
Material |
Plastic |

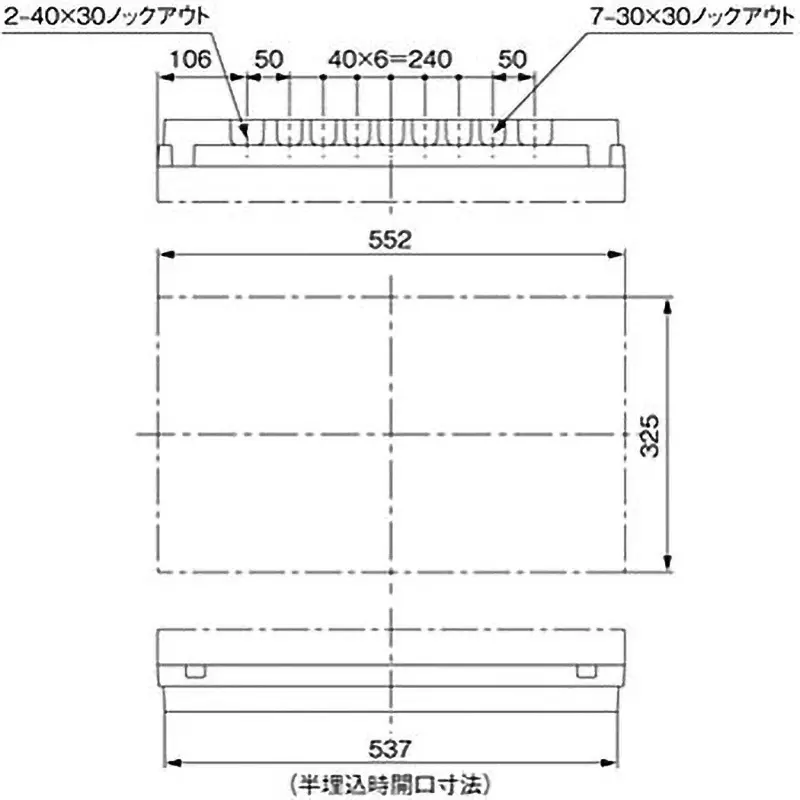

Width (mm) |
552 |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Monotaro ID |
38199585 |
Import Country |
Direct Import from Japan |
Circuit space |
2 |
No. of Terminals |
12 |
Depth (mm) |
111 |
Breaker capacity |
75 Amp |
breaker capacity for electric water heater (A) |
40 |
Height (mm) |
325 |

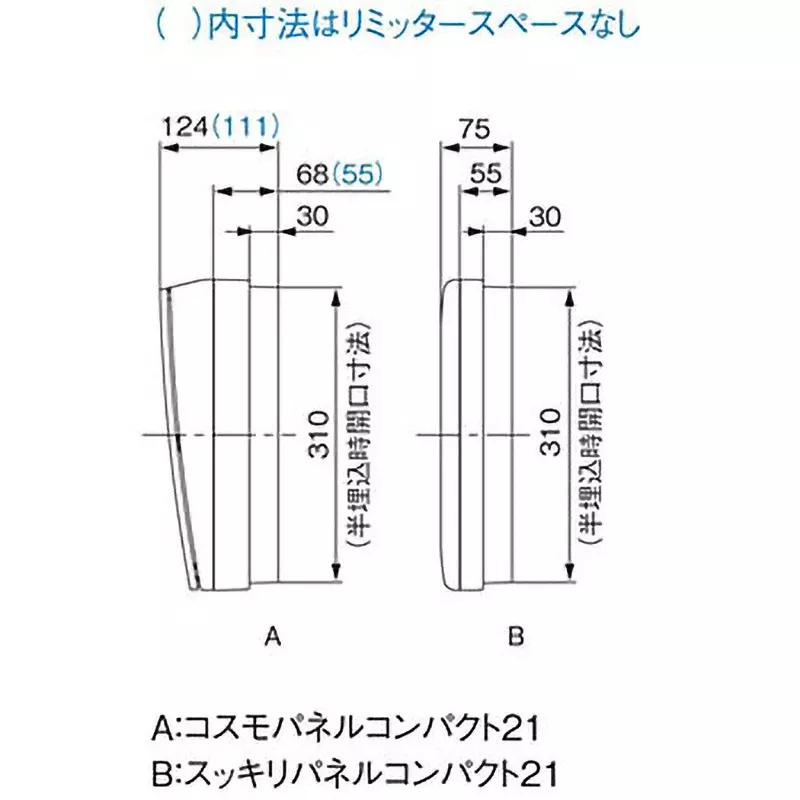

Semi-embedded dimensions (length x width x depth) (mm) |
310x537x30 |
Lead |
AA circuit breaker with neutral wire phase loss protection |
Number of branch circuits |
33 |
branch circuit breaker capaity |
2P1E20A/2P2E20A/2P2E30A/2P2E40A |
Panel rating (A) |
100 |
Branch Circuit (2P2E) |
(20 Amp) 6/(30 Amp 200 V) 1/(40 Amp 200 V) 1 |
Circuit Breaker |
Earth leakage breaker |
