| Model No | BPC3515V |
| Protection Class | IP44 |
| Door | One Door |
| Type of Product | Panel Cabinet |
Model No |
BPC3515V |
Protection Class |
IP44 |
Door |
One Door |
Type of Product |
Panel Cabinet |
Country of Origin |
Japan |
Specifications |
(Door) With Waterproof Packing |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Monotaro ID |
38192341 |
Import Country |
Direct Import from Japan |
Depth (mm) |
120 |
Paint Color |
Mild white (Japan coating number: E22-90B, Munsell symbol: 2.5Y9 / 1 (reference value)) |
Mass (Kg) |
10.6 |
Handle |
Flat rotary handle (for outdoor use) |

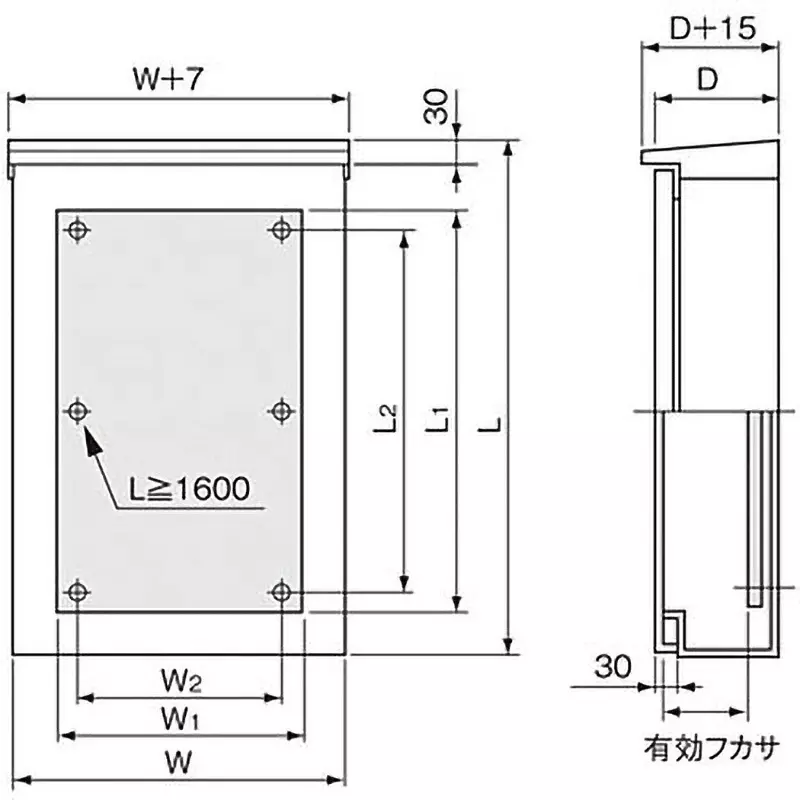

External Dimensions (width x depth x height) (mm) |
300x530x150 |
Wall Thickness (mm) |
(Box Door) 1.6 (Substrate) 15 |
Dimension W2 (mm) |
150 |
Dimension L2 |
380 mm |
Base Dimensions (mm) |
190x390 |
Material (Circuit Board) |
wooden |
Main Unit Material |
Steel plate |
