Ships within 25 days
View
View
View
View
| Type | Standard Type |
| Model No | BHM36181B2EV |
| Color | White (Munsell symbol 10Y9/0.5) |
| Type of Product | Residential Distribution Panel |
Type |
Standard Type |
Model No |
BHM36181B2EV |
Color |
White (Munsell symbol 10Y9/0.5) |
Type of Product |
Residential Distribution Panel |
Country of Origin |
Japan |
Material |
Plastic |
Suitable For |
(Standards Conformity Certification) Product That Complies With Japan Wiring System Industry Association Residential Distribution Board Standards |
Specifications |
With Retraction Method (Limiter Space), (Number Of Branch Current Sensors) 19 |
Breaking Capacity |
(Grid Connection) 20 Amp |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Function |
EV/PHEV charging circuit/Ecocute/IH compatible |
Monotaro ID |
51386310 |
Import Country |
Direct Import from Japan |
Used For |
EcoCute (branch type) |
No. of Circuits |
(Implementation) 18 |
Circuit space |
1 |
Main capacity (A) |
60 |
No. of Terminals |
12 |
Breaker capacity |
30 Amp |
Contents |
(2P1E 20 Amp)11, (2P2E 20 Amp 100 V)4, (2P2E 20 Amp 200 V)1, (2P2E 30 Amp 200 V)1, (ELB 2P2E 20 Amp 15m Amp 200 V)1 |
Chip Breaker |
EV/PHEV charging circuit compatible: 20A |

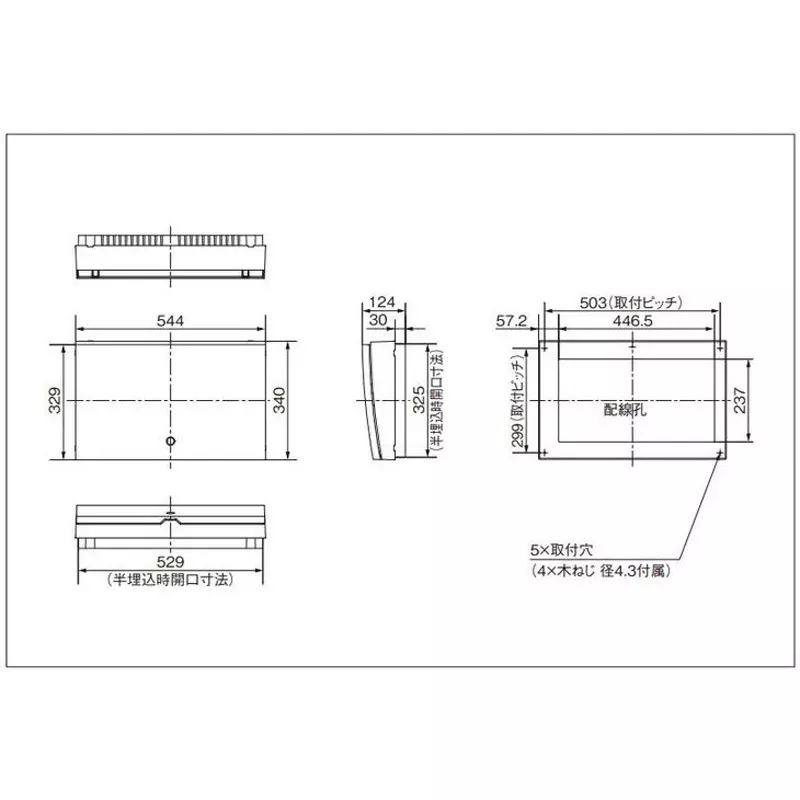

Semi-embedded dimensions (length x width x depth) (mm) |
325x529x30 |
Structure |
With Door, Both Exposed And Semi-Recessed Type |
Dimensions WxDxH (mm) |
340x544x124 mm |
Looking for bulk pricing or different specifications?
