| Type | with Large Free Space |
| Model No | BHMD87421 |
| Color | White |

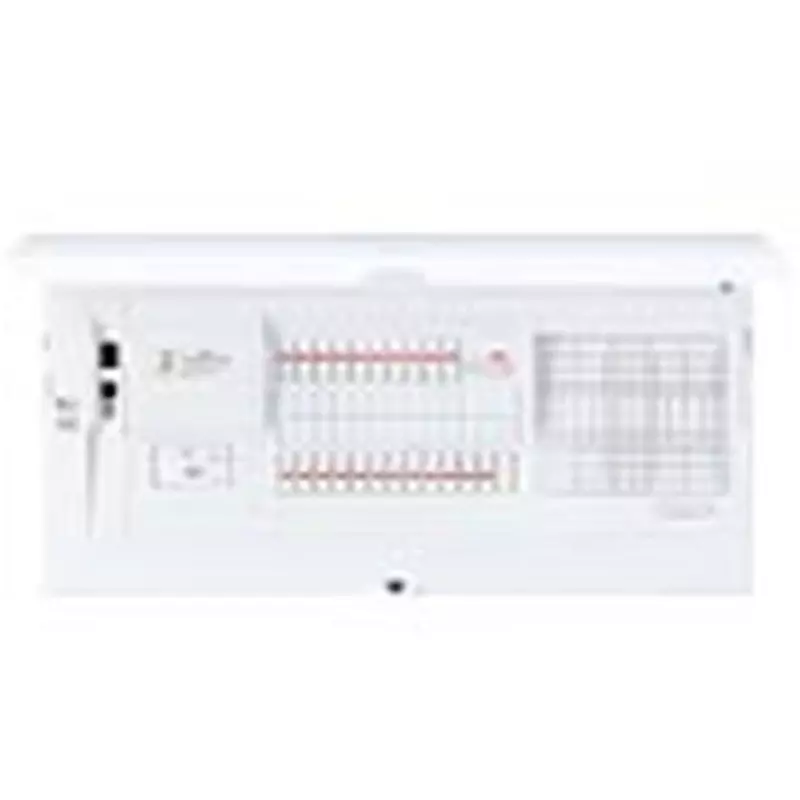

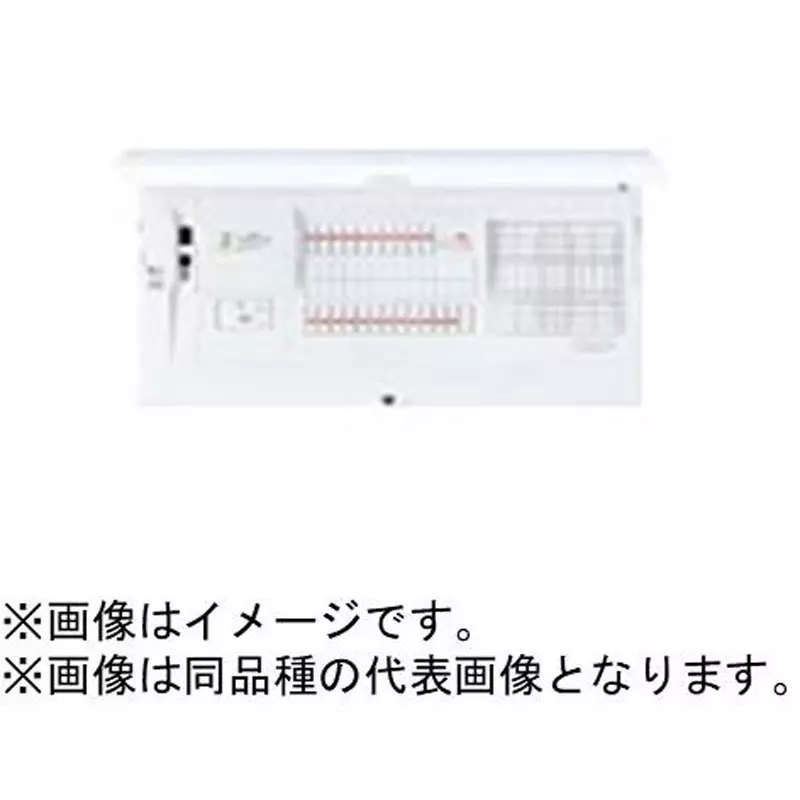

| Type of Product | Residential Distribution Panel |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type |
with Large Free Space |
Model No |
BHMD87421 |
Color |
White |
Type of Product |
Residential Distribution Panel |
Country of Origin |
Japan |
Material |
Plastic |
Specifications |
Multi-communication type, standard, with free space, no limiter space, (number of branch current sensors) 43 |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Function |
Standard Type |
Monotaro ID |
51388035 |
Import Country |
Direct Import from Japan |
No. of Circuits |
(Implementation)42 |
Circuit space |
1 |
Main capacity (A) |
75 |
No. of Terminals |
12 (6 for 11 circuits) |
Contents |
(2P1E 20 Amp)34, (2P2E 20 Amp 100 V)8 |

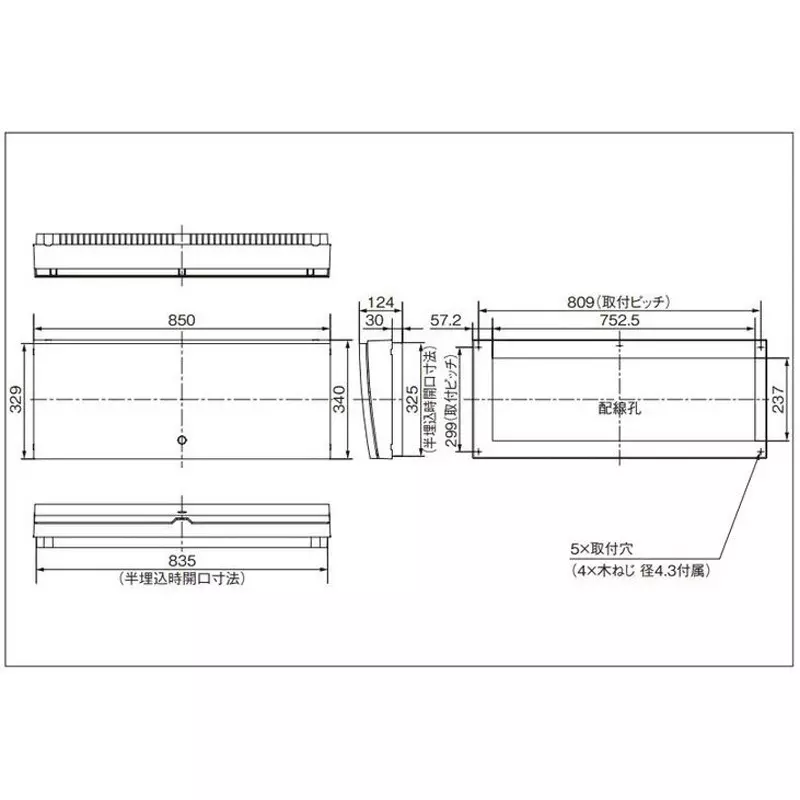

Semi-embedded dimensions (length x width x depth) (mm) |
325x835x30 |
Structure |
With Door, Both Exposed And Semi-Recessed Type |
Dimensions WxDxH (mm) |
340x850x124 mm |
Applicable Standard |
(Certified) Japan Wiring System Industry Association Residential Distribution Board Standard Compliant Product |
munsell value |
10Y9/0.5 |
