| Type | Standard Type |
| Model No | BHR36342GJ |
| Color | White (Munsell symbol 10Y9/0.5) |
| Type of Product | Residential Distribution Panel |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type |
Standard Type |
Model No |
BHR36342GJ |
Color |
White (Munsell symbol 10Y9/0.5) |
Type of Product |
Residential Distribution Panel |
Country of Origin |
Japan |
Material |
Plastic |
Specifications |
(Number Of Branch Current Sensors) 39, With Retraction Method (Limiter Space) |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Function |
Compatible with double power generation |
Monotaro ID |
51389198 |
Import Country |
Direct Import from Japan |
No. of Circuits |
Implementation: 34 |
Circuit space |
2 |
Main capacity (A) |
60 |
No. of Terminals |
12 (6 for 12 circuits) |
Contents |
(2P1E 20 Amp)28, (2P2E 20 Amp 100 V)6 |
Chip Breaker |
Grid connection for solar power generation: 30A, connection for private power generation: 20A |
Structure |
With Door, Both Exposed And Semi-Recessed Type |

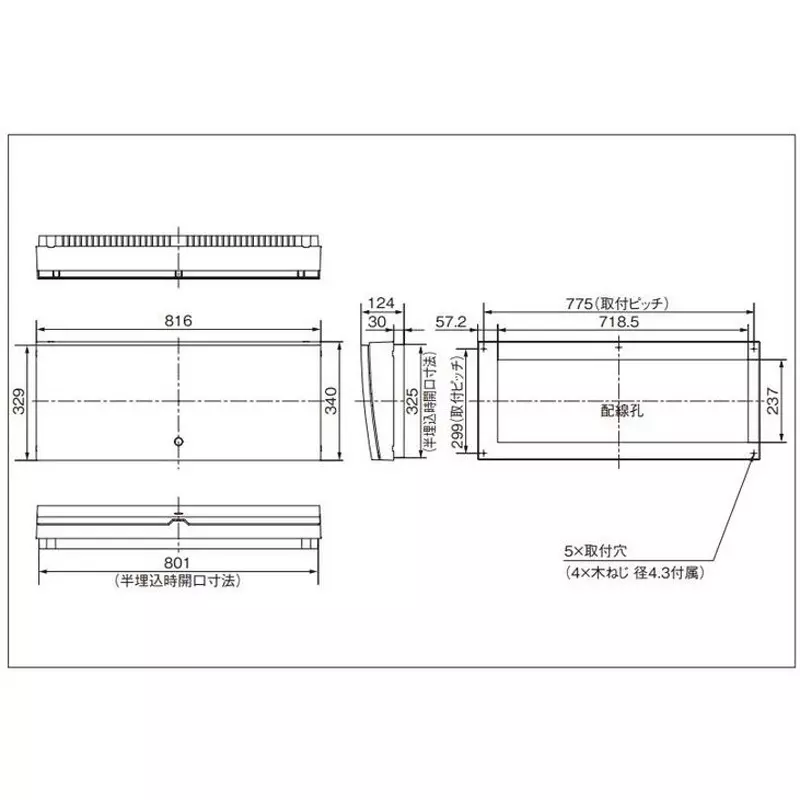

Dimensions WxDxH (mm) |
340x816x124, (semi-embedded) 325x801x30 mm |
