| Type | with Free Space |
| Model No | BHRF37382C2 |
| Color | White (Munsell symbol 10Y9/0.5) |

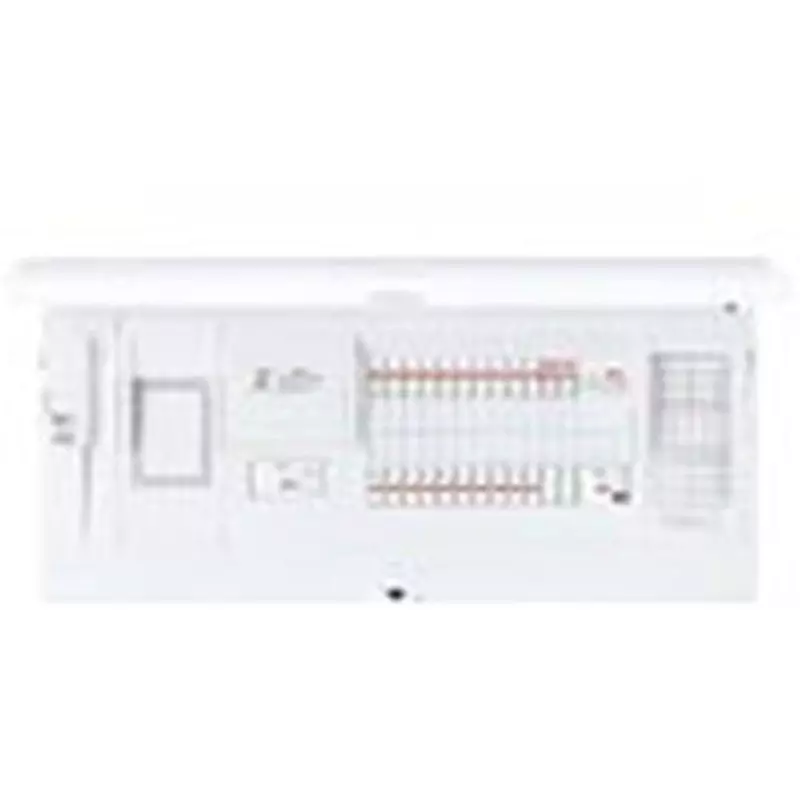

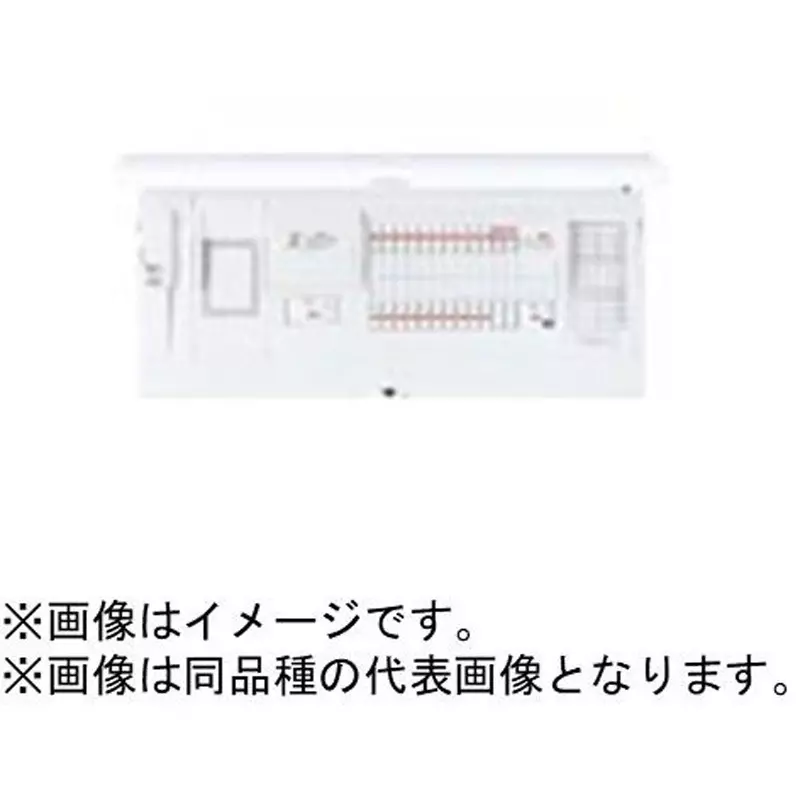

| Type of Product | Residential Distribution Panel |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type |
with Free Space |
Model No |
BHRF37382C2 |
Color |
White (Munsell symbol 10Y9/0.5) |
Type of Product |
Residential Distribution Panel |
Country of Origin |
Japan |
Material |
Plastic |
Specifications |
With Retracting Method (Limiter Space), (Number Of Branch Current Sensors) 43 |
Breaking Capacity |
20 Amp |
Width (mm) |
850 |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Function |
Solar Power Generation System, Ecocute, Ih Compatible |
Monotaro ID |
51375740 |
Import Country |
Direct Import from Japan |
Used For |
EcoCute (branch type) |
No. of Circuits |
(Implementation)38 |
Circuit space |
2 |
Main capacity (A) |
75 |
No. of Terminals |
12 (6 for 12 circuits) |
Depth (mm) |
124 |
Breaker capacity |
30 Amp |
Contents |
(2P1E 20 Amp)28, (2P2E 20 Amp 100 V)8, (2P2E 20 Amp 200 V)1, (2P2E 30 Amp 200 V)1 |
Height (mm) |
340 |

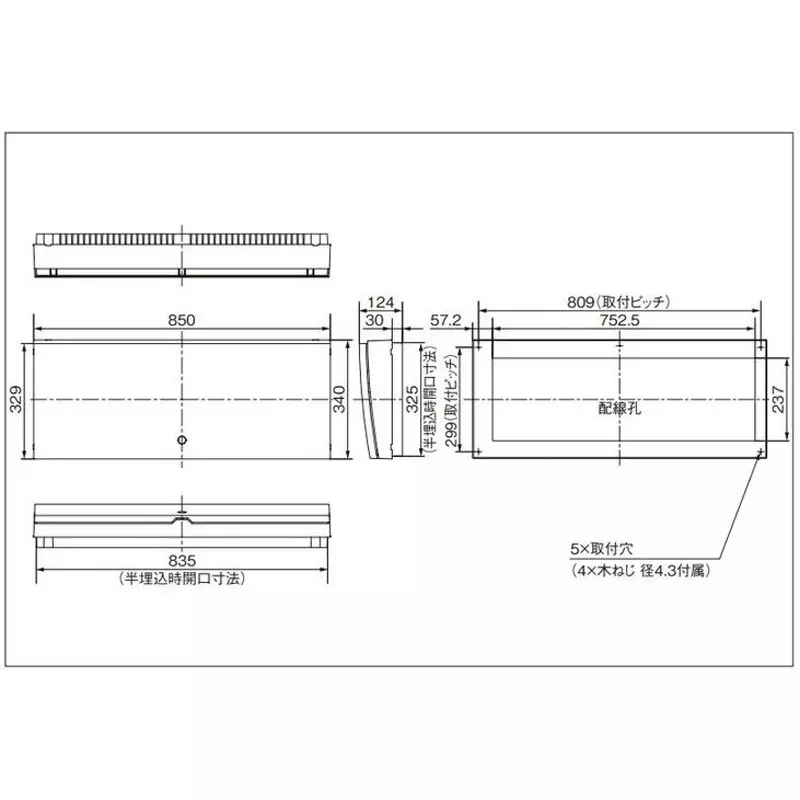

Semi-embedded dimensions (length x width x depth) (mm) |
325x835x30 |
Structure |
With Door, Both Exposed And Semi-Recessed Type |
