Ships within 25 days
View
View
View
View
| Type | Advanced |
| Model No | BQE87222C2Z |
| Color | White (Munsell symbol 10Y9/0.5) |
| Type of Product | Cosmo Panel |
Type |
Advanced |
Model No |
BQE87222C2Z |
Color |
White (Munsell symbol 10Y9/0.5) |
Type of Product |
Cosmo Panel |
Country of Origin |
Japan |
Material |
Plastic |
Suitable For |
(Standards Conformance Certification) High-Performance Standard Compliant Product For Residential Distribution Boards Of The Japan Wiring System Industry Association (General Incorporated Association) |
Specifications |
No retraction method (limiter space) |
Breaking Capacity |
20 Amp |
Width (mm) |
484 |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Function |
Earthquake safety ban (Compatible with all electric power generation system) / Equipped with seismic breaker |
Monotaro ID |
51382399 |
Import Country |
Direct Import from Japan |
Used For |
EcoCute (branch type) |
No. of Circuits |
(Implementation) 22 |
Circuit space |
2 |
Main capacity (A) |
75 |
No. of Terminals |
12 (6 for 12 circuits or less) |
Depth (mm) |
111 |
Breaker capacity |
30 Amp |
Contents |
(2P1E 20 Amp)14, (2P2E 20 Amp 100 V)6, (2P2E 20 Amp 200 V)1, (2P2E 30 Amp 200 V)1 |
Height (mm) |
325 |

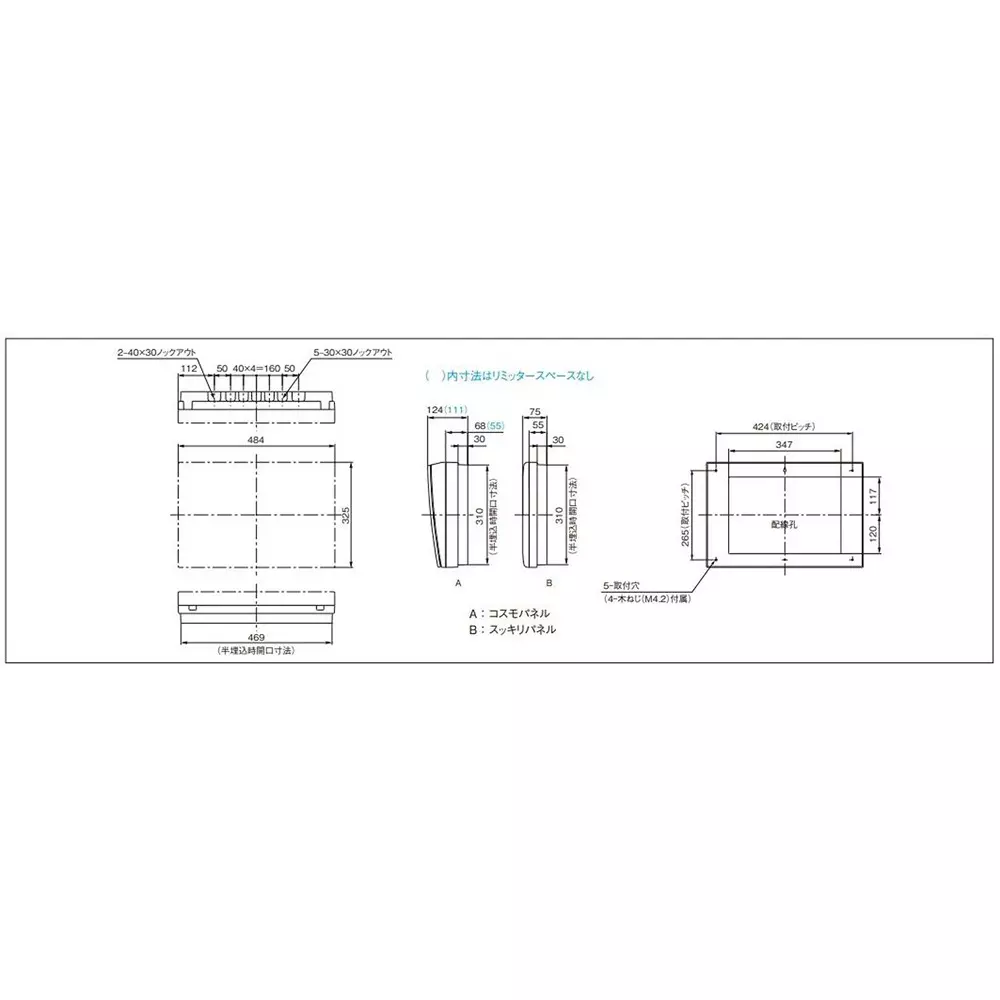

Semi-embedded dimensions (length x width x depth) (mm) |
310x469x30 |
Structure |
With Door, Both Exposed And Semi-Recessed Type |
