| Type | Home Distribution Board |
| Model No | BQRD86222 |
| Shape | Both exposed and semi-embedded type |
| Color | White |
Type |
Home Distribution Board |
Model No |
BQRD86222 |
Shape |
Both exposed and semi-embedded type |
Color |
White |
Door |
Attached |
Type of Product |
Compact Cosmo Panel |
Country of Origin |
Japan |
Material |
Plastic |
Circuit Type |
Earth leakage breaker |
Width (mm) |
654 |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Monotaro ID |
38214206 |
Import Country |
Direct Import from Japan |
Space |
With (Large type) |
Circuit space |
2 |
No. of Terminals |
12 |
Depth (mm) |
111 |
Breaker capacity |
60 Amp |
Height (mm) |
325 |

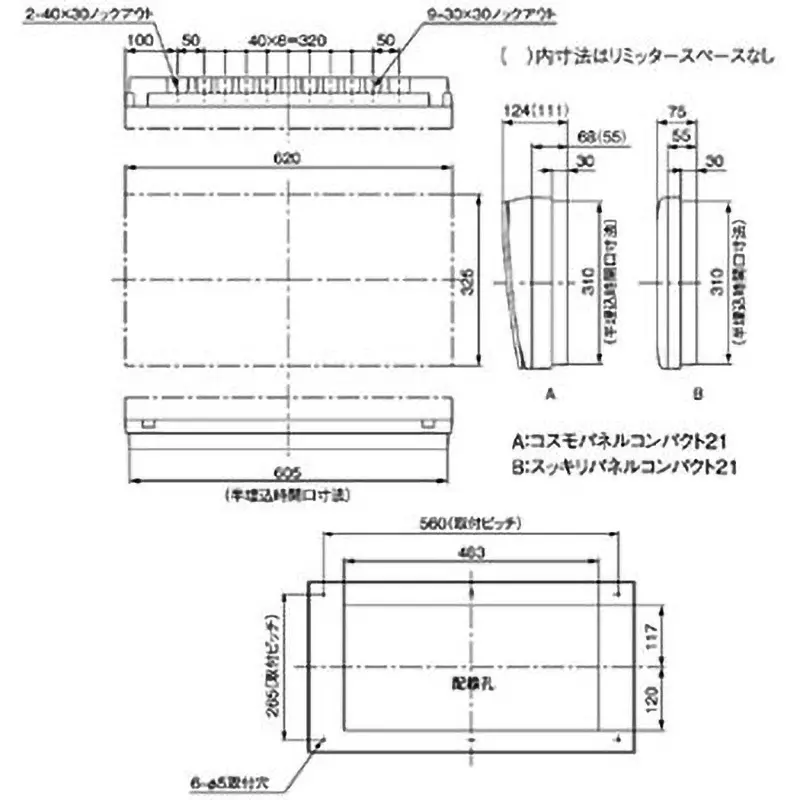

Semi-embedded dimensions (length x width x depth) (mm) |
310x639x30 |
munsell value |
10Y9/0.5 |
Lead |
AA circuit breaker with neutral wire phase loss protection |
Number of branch circuits |
22 |
branch circuit breaker capaity |
2P1E20A/2P2E20A |
Panel rating (A) |
100 |
Branch Circuit (2P2E) |
6 |
