| Model No | BOG715VW |
| Protection Class | IP44 |

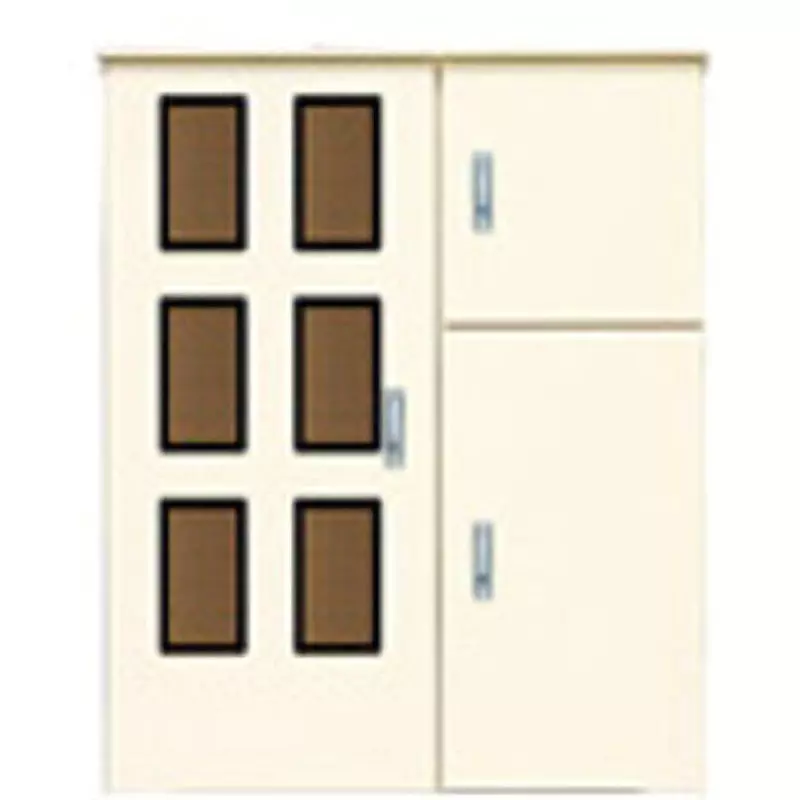

| Type of Product | Accumulator Panel Cabinet |
| Country of Origin | Japan |
Model No |
BOG715VW |
Protection Class |
IP44 |
Type of Product |
Accumulator Panel Cabinet |
Country of Origin |
Japan |
Material |
(Metering window) synthetic resin, (substrate) wooden, (box / door) steel plate |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Monotaro ID |
73432013 |
Import Country |
Direct Import from Japan |
Space |
(Whm Space) 30 Ampx15, (Main Space) 300 Ampx1, (Branch Space) 30 Ampx15 |
Paint Color |
Mild white (Japan coating number H22-90B, Munsell symbol 2.5Y9 / 1 (reference value)) |
Mass (Kg) |
164 |
Handle |
Flat rotary handle (outdoor type) |
External Dimensions (width x depth x height) (mm) |
1400x1630x200 |
Dimension L3 (mm) |
390 |
Wall Thickness (mm) |
(Float Plate Glass) 3, (Substrate) Whm Part: 25, Master / Branch Part: 15, (Box / Door) 1.6 |
Dimension L1 |
500 mm |
Dimension W2 (mm) |
700 |
Dimension W1 (mm) |
700 |
Dimension W3 (mm) |
600 |
Dimension W4 (mm) |
590 |
Dimension L2 |
1490 mm |
Dimension L4 |
990 mm |
