| Model No | BON51017VK |
| Protection Class | IP2XD |
| Door | One door |
| Type of Product | Board Cabinet |
Model No |
BON51017VK |
Protection Class |
IP2XD |
Door |
One door |
Type of Product |
Board Cabinet |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Monotaro ID |
38191063 |
Import Country |
Direct Import from Japan |
Depth (mm) |
145 |
Paint Color |
Mild white (Japan coating number: E22-90B, Munsell symbol: 2.5Y9 / 1 (reference value)) |
Mass (Kg) |
26.9 |
Handle |
Flat rotary handle (MA1-2K) |
External Dimensions (width x depth x height) (mm) |
500x1000x175 |

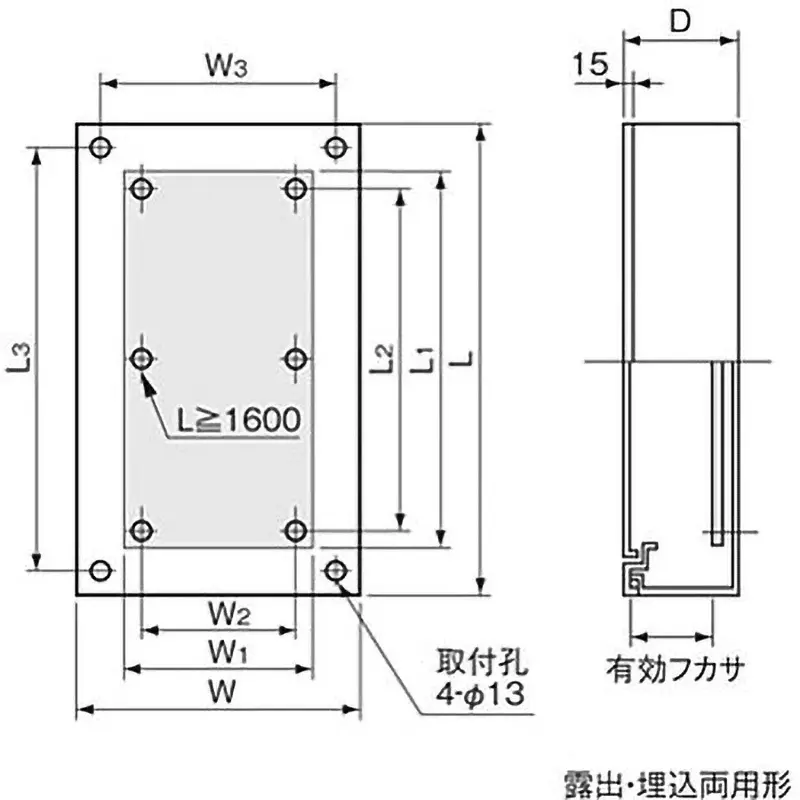

Dimension L3 (mm) |
920 |
Wall Thickness (mm) |
(Box Door) 1.6 (Substrate) 15 |
Dimension W2 (mm) |
300 |
Dimension W3 (mm) |
320 |
Dimension L2 |
850 mm |
Base Dimensions (mm) |
390x890 |
Material (Circuit Board) |
wooden |
Main Unit Material |
Steel plate |
