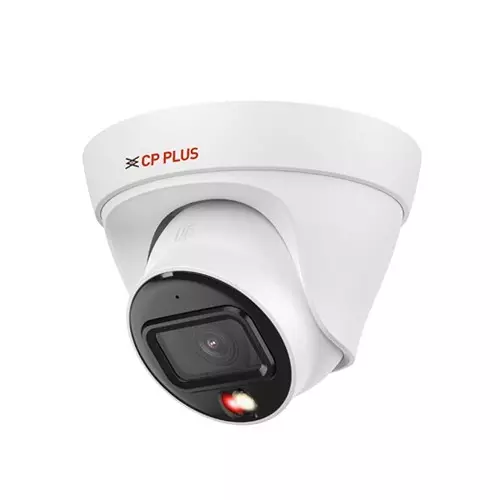

CP PLUS Dual Light Dome Camera 2 MP 30 m IR Range F1.6 Maximum Aperture, CP-UNC-DA21L3C-LQ-0360

Name: CP PLUS Dual Light Dome Camera 2 MP 30 m IR Range F1.6 Maximum Aperture, CP-UNC-DA21L3C-LQ-0360
Brand: CP PLUS
SKU: ITS.DOM.239211373
Price: 4129 INR
Availability: InStock

Visit the CP PLUS Store

EMI starts at ₹367/month. No Cost EMI available.

Available offers

Flat ₹300 off on Order above ₹7,000 | Valid for NEW Business Users

View

Flat ₹200 off on Order above ₹5000 | Valid for NEW Business Users

View

Flat ₹400 off on Order above ₹10,000 | Valid for REPEAT Business User

View

Flat ₹800 off on Order above ₹20,000 | Valid for REPEAT Business User

View

Features

Type of Product	Dual Light Dome Camera
Power Consumption	Basic: 1.4 W (12 VDC), 2.2 W (PoE); Max.: 3.3 W (12 VDC), 4.4 W (PoE) (H.265 + intelligence on + warm light intens
Weight	250 g
Minimum Illumination	0.005 lux@F1.6 (Color, 30 IRE), 0.0005 lux@F1.6 (B/W, 30 IRE), 0 lux (IR on)

More CP PLUS Dome Cameras products More Dome Cameras products

Warranty as per brand

100% Original Products

Secure payments

100% Buyer protection

Top Brands

specifications

description

Type of Product	Dual Light Dome Camera
Power Consumption	Basic: 1.4 W (12 VDC), 2.2 W (PoE); Max.: 3.3 W (12 VDC), 4.4 W (PoE) (H.265 + intelligence on + warm light intens
Weight	250 g
Minimum Illumination	0.005 lux@F1.6 (Color, 30 IRE), 0.0005 lux@F1.6 (B/W, 30 IRE), 0 lux (IR on)
Power Supply	12 VDC/PoE (802.3af)
Image Sensor	1/2.8" 2MP PS CMOS Image Sensor (0.9071 centimeters)
Resolution	2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240)
Model No	CP-UNC-DA21L3C-LQ-0360
Camera	2 MP
Lens Type	Fixed-Focal
Maximum Resolution	1920 (H) x 1080 (V)
White Balance	Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom
Video Compression	Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream)
Viewing Angle	H: 87°, V: 44°, D: 105°
Operating Temperature	-40°C to +60°C (-40°F to +140°F)
Noise Reduction	3D DNR
Close Focus Distance	1.3 m
Maximum Aperture	F1.6
Dimension	85.5x109 mm
S/N Ratio	>56 dB
Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
Audio Compression	G.711a, G.711Mu, PCM, G.726, AAC
Frame Rate	Main Stream: 2M P(1920 × 1080)@1–25/30fps Sub Stream 1: 720p (1280 × 720), D1 (704 × 576)@1–25fps/ (704 × 480)@1–30fps, VGA (640 × 480)@1-30fps, CIF (352 × 240)@1-30fps/ (352 × 288)@1-25fps Sub Stream 2: D1 (704 × 576)@1–25fps/ (704 × 480)@1–30fps, VGA(640 × 480)@1-30fps, CIF (352 × 240)@1-30fps/ (352 × 288)@1-25fps
Lens Mount	M12
Angle Adjustment	Pan: 0°-360°, Tilt: 0°-78°, Rotation: 0°-360°
ROM	128 MB
RAM	128 MB
Iris Control	Auto, Manual
Ethernet	RJ-45 (10/100 Base-T)
IR Range	30 m
Color	White
Protocol	SFTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, IGMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast
Storage Temperature	-40°C to +60°C (-40°F to +140°F)
Operating Humidity	<95% (RH), Non-condensing
Lens Size	3.6 mm
Gain Control (AGC)	Auto/Manual
Image Rotation	0°/90°/180°/270° (Support 90°/270° with 2MP Resolution and Lower)
Country of Origin	India
Name of Manufacturer/Packer/Importer	Aditya Infotech Ltd
Storage Humidity	<95% (RH), Non-condensing
DORI Distance	58.9 m (Detect), 23.6 m (Observe), 11.8 m (Recognize), 5.9 m (Identify)
