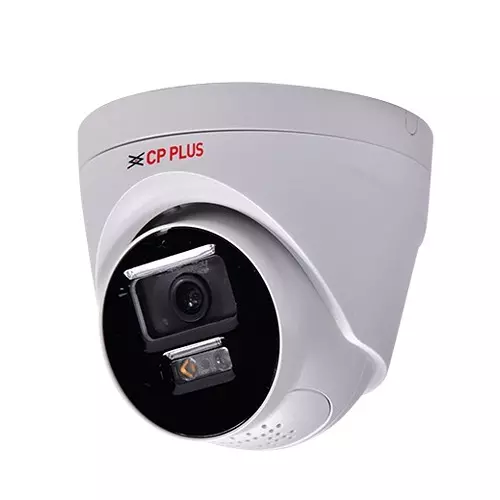

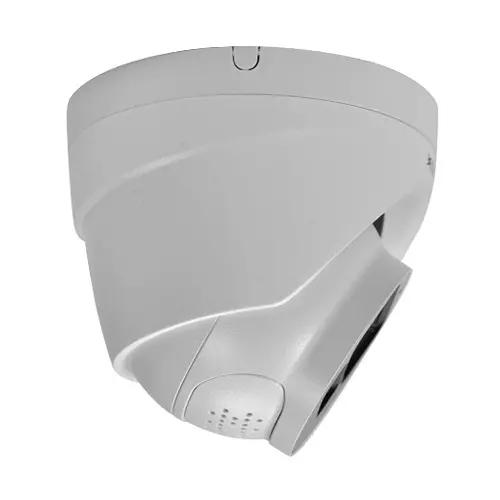

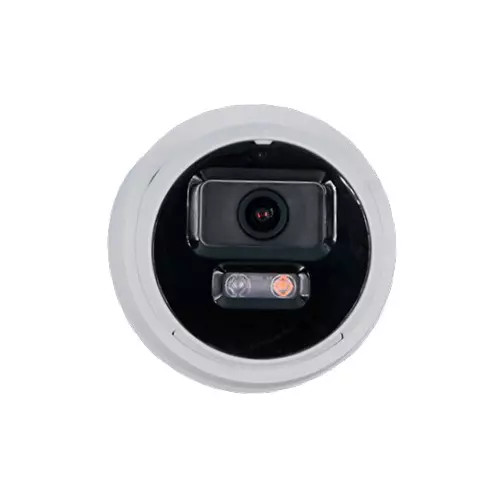

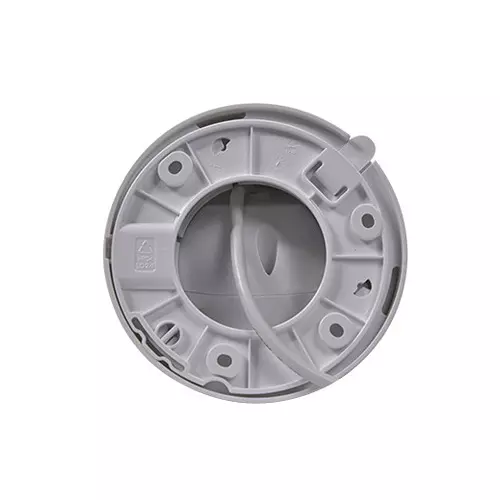

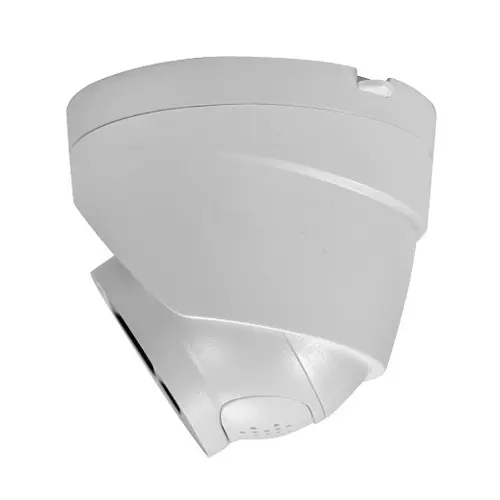

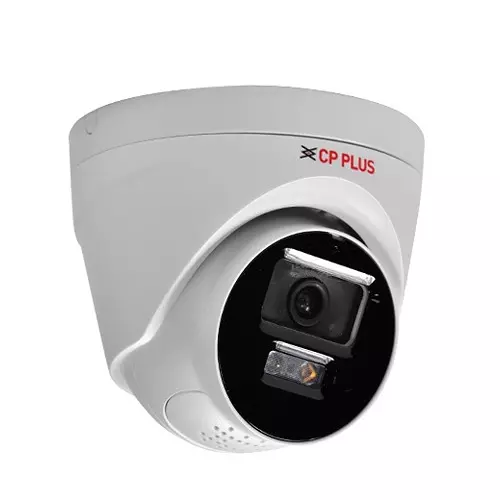

CP PLUS Dual Light Dome Camera 2 MP 30 m IR Range F1.4 Maximum Aperture, CP-UNC-DA21L3B-LQ

Name: CP PLUS Dual Light Dome Camera 2 MP 30 m IR Range F1.4 Maximum Aperture, CP-UNC-DA21L3B-LQ
Brand: CP PLUS
SKU: ITS.DOM.439211384
Price: 5309 INR
Availability: InStock

Visit the CP PLUS Store

EMI starts at ₹472/month. No Cost EMI available.

Available offers

Flat ₹400 off on Order above ₹10,000 | Valid for REPEAT Business User

View

Flat ₹800 off on Order above ₹20,000 | Valid for REPEAT Business User

View

Flat ₹200 off on Order above ₹6000 | Valid for REPEAT Business User

View

Flat ₹400 off on Order above ₹10,000 | Valid for NEW Business Users

View

Features

Type of Product	Dual Light Dome Camera
Power Consumption	Basic: 1.8 W (12 VDC), 2.5 W (PoE); Max.: 8.5 W (12 VDC), 10 W (PoE) (H.265 + intelligence on + WDR + IR intensity + warm light deterrence + speaker)
Weight	320 g
Minimum Illumination	0.001 lux@F1.4 (Color, 30 IRE), 0.0001 lux@F1.4 (B/W, 30 IRE), 0 lux (IR on)

More CP PLUS Dome Cameras products More Dome Cameras products

Warranty as Per Brand

7 Days Return Policy

100% Original Products

Secure Payments

100% Buyer Protection

Top Brands

specifications

description

Type of Product	Dual Light Dome Camera
Power Consumption	Basic: 1.8 W (12 VDC), 2.5 W (PoE); Max.: 8.5 W (12 VDC), 10 W (PoE) (H.265 + intelligence on + WDR + IR intensity + warm light deterrence + speaker)
Weight	320 g
Minimum Illumination	0.001 lux@F1.4 (Color, 30 IRE), 0.0001 lux@F1.4 (B/W, 30 IRE), 0 lux (IR on)
Power Supply	12 VDC/PoE (802.3af)
Image Sensor	1/2.8" 2MP PS CMOS Image Sensor (0.9071 centimeters)
Resolution	2MP (1920 × 1080), 1.3MP (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240)
Model No	CP-UNC-DA21L3B-LQ
Camera	2 MP
Lens Type	Fixed-Focal
Maximum Resolution	1920 (H) x 1080 (V)
White Balance	Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom
Video Compression	Instastream, H.265, H.264, H.264H, H.264B, MJPEG (Only supported by the sub stream)
IP Rating	IP67 (Weatherproof Standard)
Operating Temperature	-40°C to +60°C (-40°F to +140°F)
Noise Reduction	3D DNR
Close Focus Distance	1.1 m
Maximum Aperture	F1.4
Dimension	100.9x109.9 mm
S/N Ratio	>58 dB
Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
Audio Compression	G.711a, G.711Mu, PCM, G.726, AAC
Frame Rate	Main Stream: 2MP (1920 × 1080)@1–25/30fps Sub Stream 1: 720P (1280 × 720), D1 (704 × 576)@1–25fps/ (704 × 480)@1–30fps, VGA(640 × 480)@1-30fps, CIF (352 × 240)@1-30fps, (352 × 288)@1-25fps Sub Stream 2: D1 (704 × 576)@1–25fps/ (704 × 480)@1–30fps, VGA(640 × 480)@1-30fps, CIF (352 × 240)@1-30fps/ (352 × 288) @1-25fps
Lens Mount	M12
Angle Adjustment	Pan: 0°-360°, Tilt: 0°-78°, Rotation: 0°-360°
ROM	128 MB
RAM	128 MB
Iris Control	Fixed
Ethernet	RJ-45 (10/100 Base-T)
IR Range	30 m
Color	White
Protocol	FTP, IPv6, IPv4, DNS,RTCP, NTP, RTP, HTTP, HTTPS, SNMP V3, TLS Version 1.2, TCP/IP, PPPoE, NFS, UDP, ICMP, IGMP, SSL, DHCP, SMTP, RTSPS, ONVIF (Profile S, Profile G, Profile T), unicast, multicast
Storage Temperature	-40°C to +60°C (-40°F to +140°F)
Operating Humidity	<95% (RH), Non-condensing
Lens Size	3.6 mm
Gain Control (AGC)	Auto/Manual
Image Rotation	0°/90°/180°/270° (Support 90°/270° with 2MP Resolution and Lower)
Country of Origin	India
Name of Manufacturer/Packer/Importer	Aditya Infotech Ltd
Storage Humidity	<95% (RH), Non-condensing
DORI Distance	53.8 m (Detect), 21.5 m (Observe), 10.8 m (Recognize), 5.4 m (Identify)
