| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG CO., LTD |
| Type of Product | Small Knurled Knob |
| Model No | A-40-5 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Type of Product |
Small Knurled Knob |
Model No |
A-40-5 |
Material |
Mounting Part: Free-Cutting Brass Bar (C3602BD) |
Type |
Round Type |
Monotaro ID |
61093287 |
Weight |
43 g |

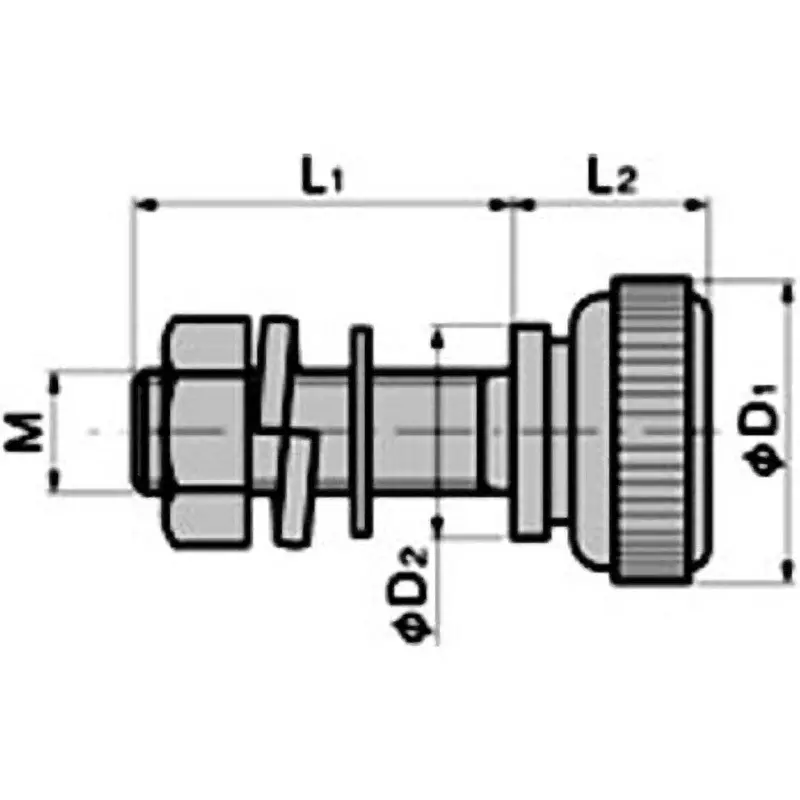

Dimensions L1 (mm) |
25 |
TAKIGEN Code |
882 |
Dimensions l2 (mm) |
13 |
Surface Finish Type |
Body: Chrome Plating (MBCr), Mounting Part: Chrome Plating (MBCr) |
Dimension d2 (Φmm) |
14 |
Dimension d1 (Φmm) |
20 |
Connection to Equipment |
Male Screw (With Step) |
Dimension M |
M8 |
Main Unit Material |
Free-Cutting Brass Bar (C3602BD) |
Mounting Length (mm) |
25 |
Nominal Size |
Screw: M8 |
