Ships within 25 days
View
View
View
View
| Country of Origin | JAPAN |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG CO., LTD |
| Type of Product | Knurled Knob with Spring |
| Model No | A-1039-4(M6) |
Country of Origin |
JAPAN |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Type of Product |
Knurled Knob with Spring |
Model No |
A-1039-4(M6) |
Material |
Mounting Part: Stainless Steel (SUS304) |
Type |
Round Type |
Monotaro ID |
61101748 |
Weight |
16 g |

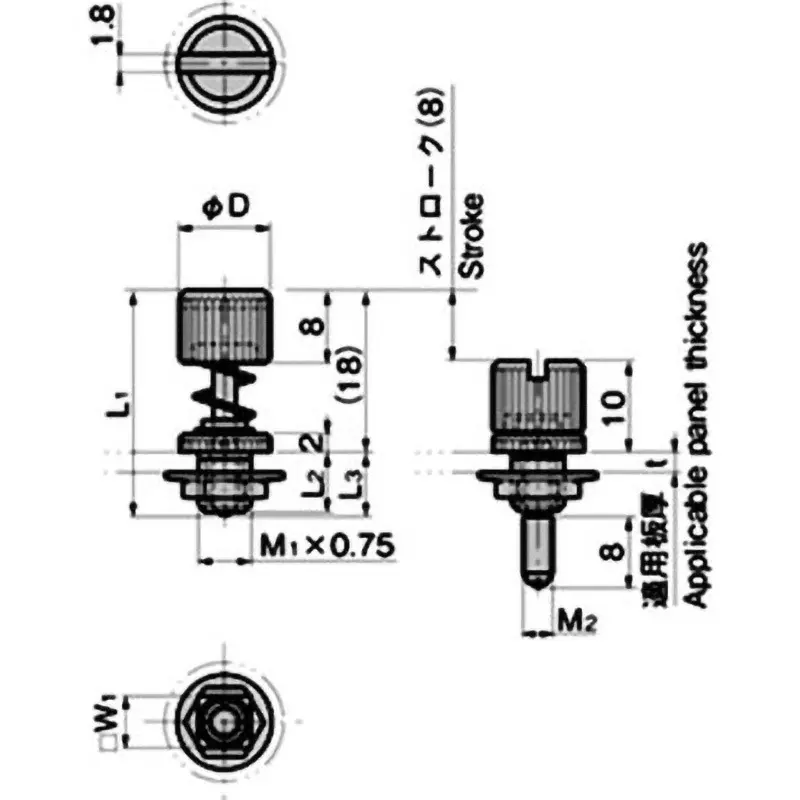

Dimensions L1 (mm) |
27 |
Dimension L3 (mm) |
9 |
TAKIGEN Code |
3193 |
Dimensions W2 (mm) |
8.5 |
Dimensions l2 (mm) |
8 |
Dimensions W1 (mm) |
8 |
Surface Finish Type |
Body: Mirror Buff Polishing, Mounting Part: Mirror Buff Polishing |
Connection to Equipment |
Male Screw |
Dimensions T (mm) |
0.8 to 3.2 |
Main Unit Material |
Stainless Steel (SUS304) |
Nominal Size |
Screw: M6 |
Dimension D (Φmm) |
14 |
Dimension M2 (mm) |
M6 |
Dimension M1 (mm) |
8 |
Import Country |
Direct Import from Japan |
