| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG CO., LTD |
| Type of Product | Foot Length Knurl Knob |
| Model No | A-1176-47 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Type of Product |
Foot Length Knurl Knob |
Model No |
A-1176-47 |
Material |
Mounting Part: Stainless Steel (SUS303) |
Type |
Round Type |
Included Components |
1 Nylon Washer |
Monotaro ID |
61103464 |
Weight |
23 g |

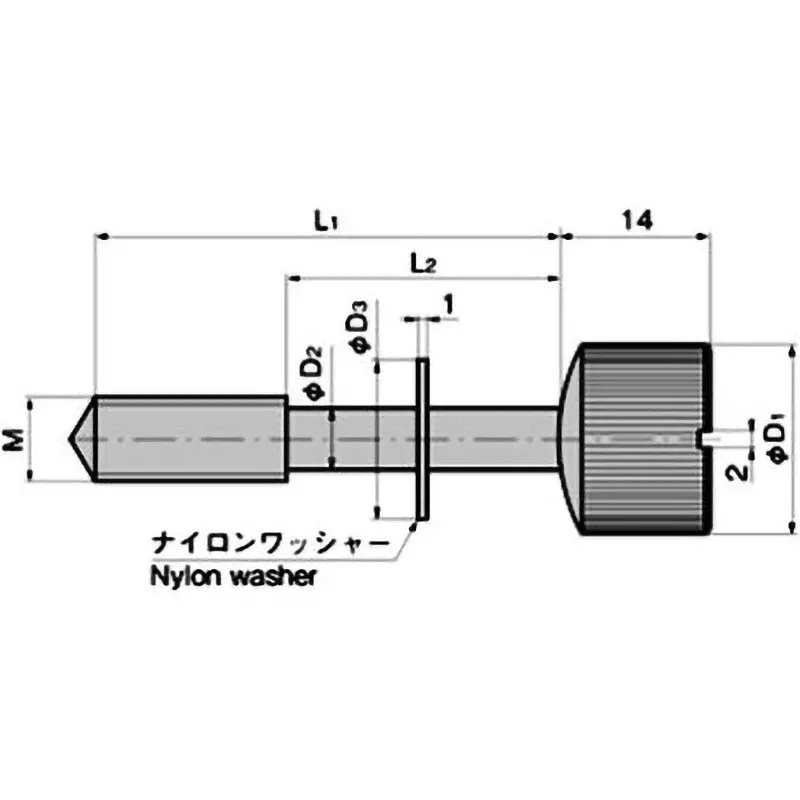

Dimensions L1 (mm) |
20 |
Dimension L3 (mm) |
20 |
TAKIGEN Code |
1619 |
Dimensions l2 (mm) |
10 |
Surface Finish Type |
Body: Mirror Buff Polishing, Mounting Part: Mirror Buff Polishing |
Dimension d2 (Φmm) |
15 |
Dimension d3 (Φmm) |
4.0999999999999996 |
Dimension d1 (Φmm) |
10 |
Dimension d4 (mm) |
10 |
Connection to Equipment |
Male Screw |
Dimension M |
M5 |
Main Unit Material |
Stainless Steel (SUS303) |
Mounting Length (mm) |
20 |
Nominal Size |
Screw: M5 |
Import Country |
Direct Import from Japan |
