Country of Origin | Japan |
Name of Manufacturer/Packer/Importer | TAKIGEN MFG CO., LTD |
Type of Product | Stainless Steel Catch Clip With Key |
Model No | C-1007-21 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Type of Product |
Stainless Steel Catch Clip With Key |
Model No |
C-1007-21 |
Material |
Cold Rolled Stainless Steel Sheet (SUS304) |
Monotaro ID |
61124096 |
Weight |
96 g |

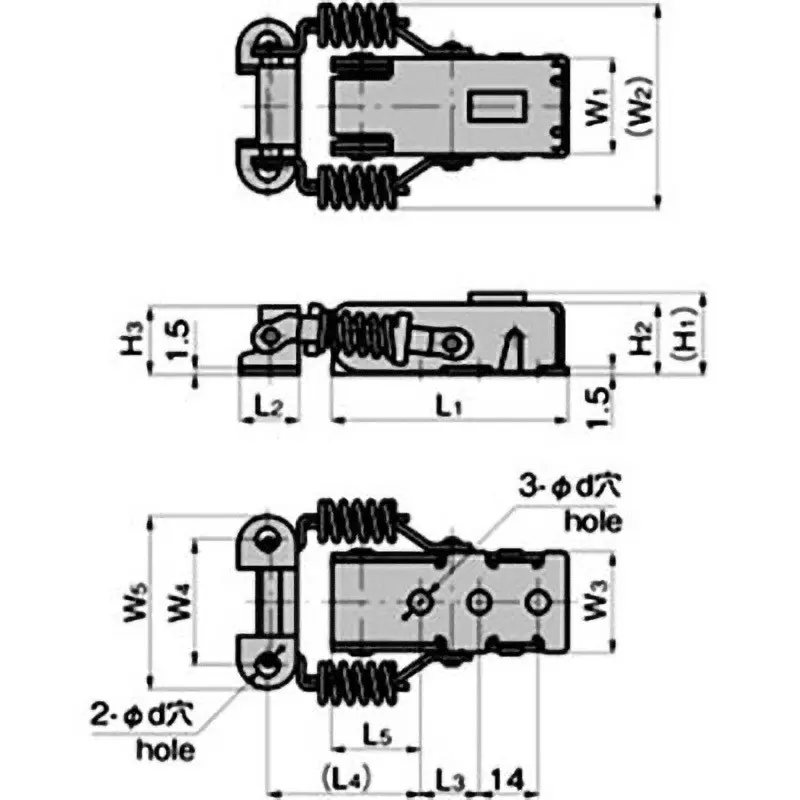

Dimensions L1 (mm) |
56 |
Dimension L3 (mm) |
14 |
TAKIGEN Code |
23781 |
Dimensions W2 (mm) |
48.5 |
Dimensions l2 (mm) |
14 |
Dimensions l4 (mm) |
36.5 |
Surface Finish Type |
Gloss Barrel Polishing |
Dimensions H1 (mm) |
19.5 |
Dimension W3 (mm) |
24 |
Dimension W4 (mm) |
30 |
Dimensions H2 (mm) |
16.8 |
Dimension H3 (mm) |
16 |
Dimensions l5 (mm) |
21 |
Dimension W5 (mm) |
41 |
