| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG CO., LTD |

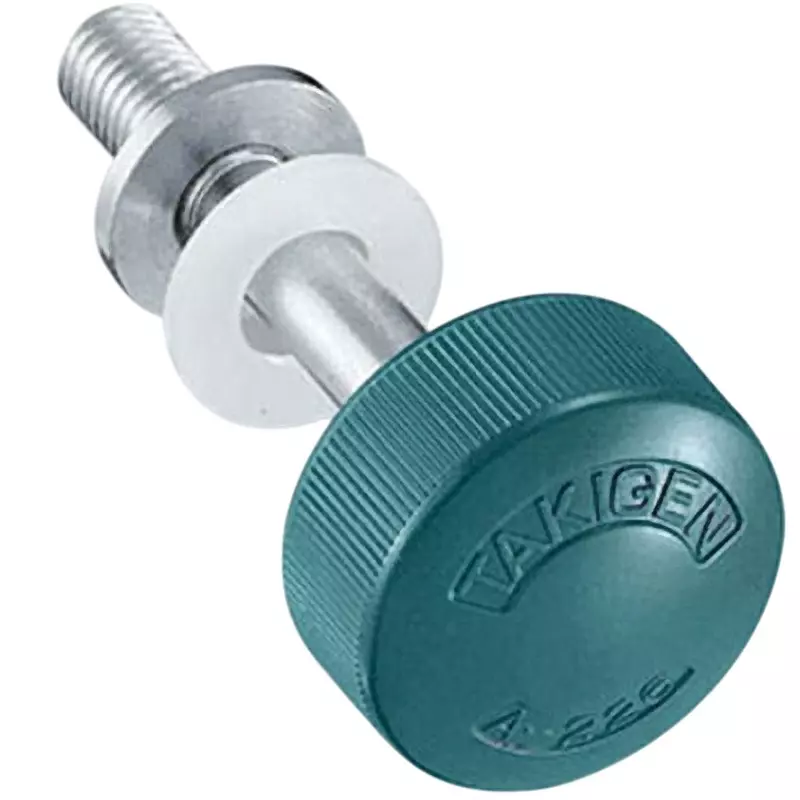

| Type of Product | Large Knurled Knob |
| Model No | A-226-1-Green |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Type of Product |
Large Knurled Knob |
Model No |
A-226-1-Green |
Material |
Mounting Part: Mild Steel Wire (SWRM) |
Type |
Round Type |
Monotaro ID |
61098144 |

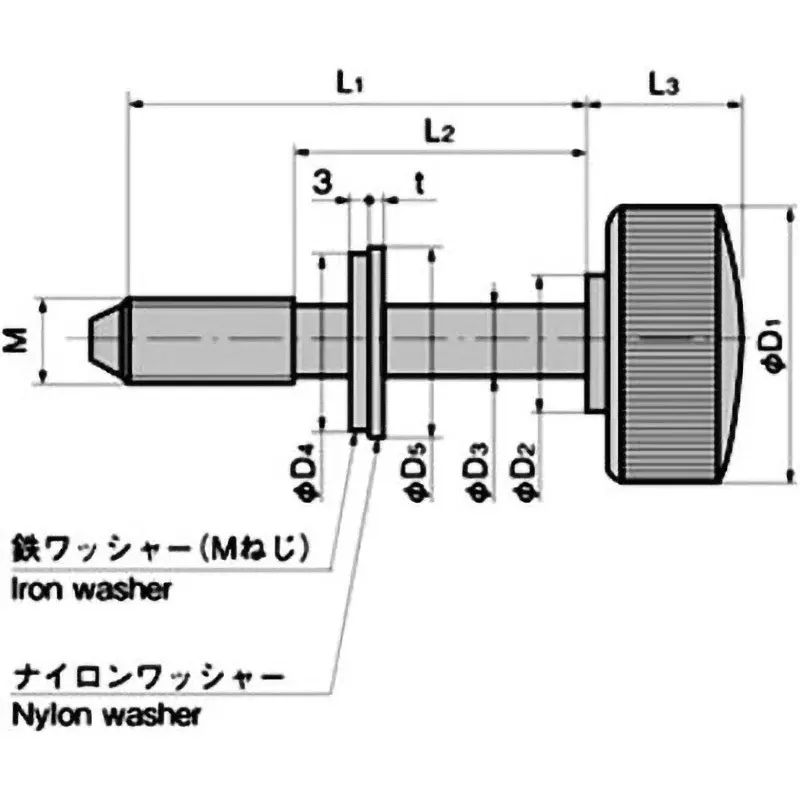

Dimensions L1 (mm) |
67 |
Dimension L3 (mm) |
24 |
TAKIGEN Code |
560 |
Dimensions l2 (mm) |
43 |
Surface Finish Type |
Mounting Part: Zinc Plating Chromate Treatment (MFZn-C) |
Dimension d2 (Φmm) |
20 |
Dimension d3 (Φmm) |
10 |
Dimension d1 (Φmm) |
40 |
Dimension d4 (mm) |
25 |
Connection to Equipment |
Male Screw |
Dimension D5 (mm) |
26 |
Dimension M |
M12 |
Standard Color |
Green |
Dimensions T (mm) |
2.5 |
Main Unit Material |
Urea Resin (UF) |
Mounting Length (mm) |
67 |
Nominal Size |
Screw: M12 |
