| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG CO., LTD |

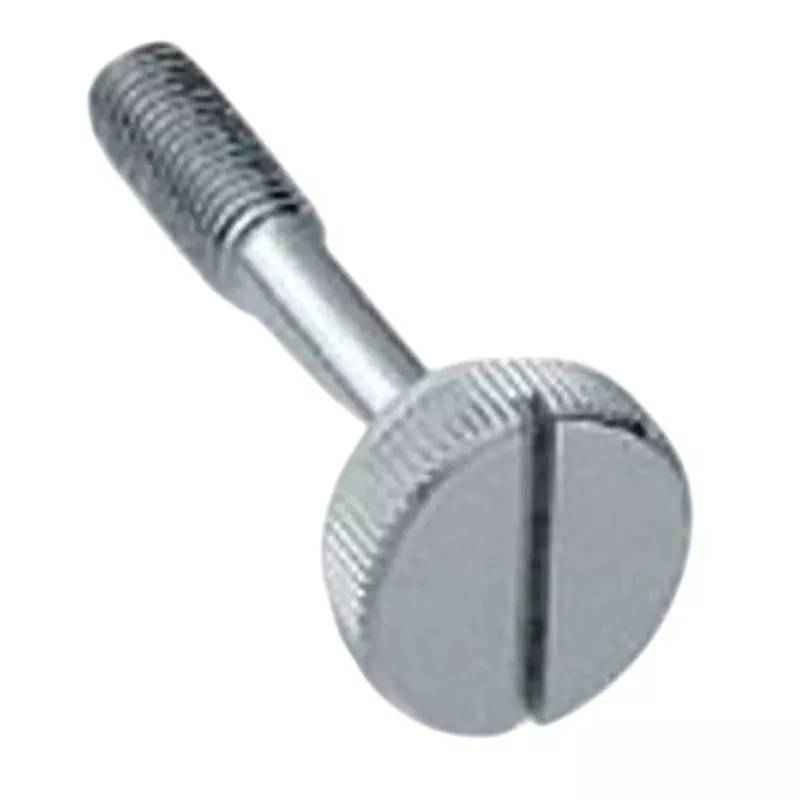

| Type of Product | Foot Length Knurl Knob |
| Model No | A-1176-12 |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Type of Product |
Foot Length Knurl Knob |
Model No |
A-1176-12 |
Material |
Mounting Part: Stainless Steel (SUS303) |
Type |
Round Type |
Included Components |
1 Nylon Washer |
Monotaro ID |
61103263 |
Weight |
36 g |
Application |
Distribution Boards, Control Equipment, Vending Machines |

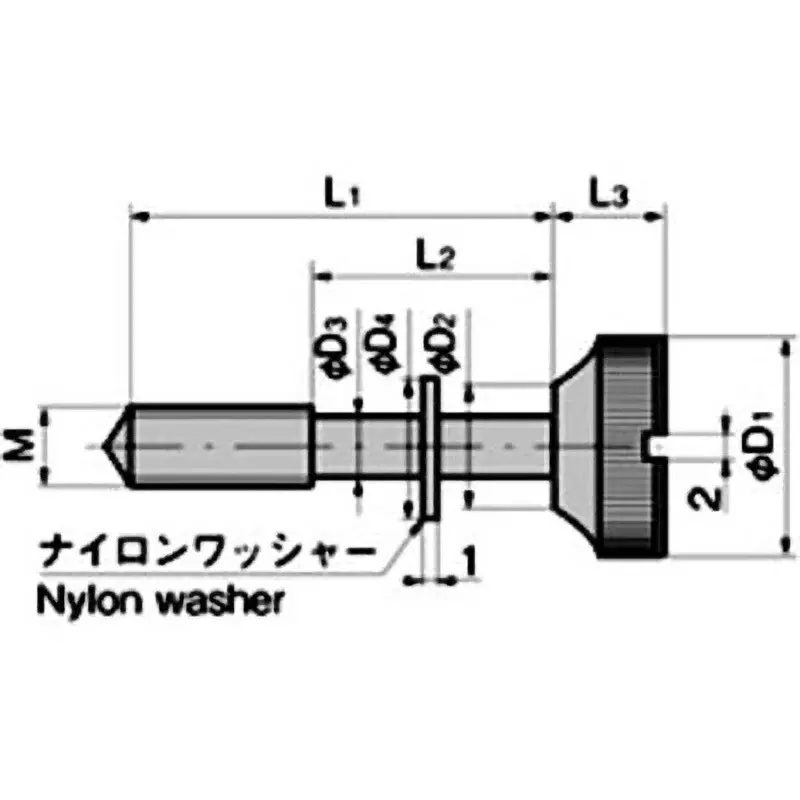

Dimensions L1 (mm) |
34 |
Dimension L3 (mm) |
11 |
TAKIGEN Code |
763 |
Dimensions l2 (mm) |
19 |
Surface Finish Type |
Body: Mirror Buff Polishing, Mounting Part: Mirror Buff Polishing |
Dimension d2 (Φmm) |
12 |
Dimension d3 (Φmm) |
5.8 |
Dimension d1 (Φmm) |
22 |
Dimension d4 (mm) |
1.4 |
Connection to Equipment |
Male Screw |
Dimension M |
M8 |
Main Unit Material |
Stainless Steel (SUS303) |
Mounting Length (mm) |
34 |
Nominal Size |
Screw: M8 |
