Ships within 25 days
View
View
View
View
| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG CO., LTD |

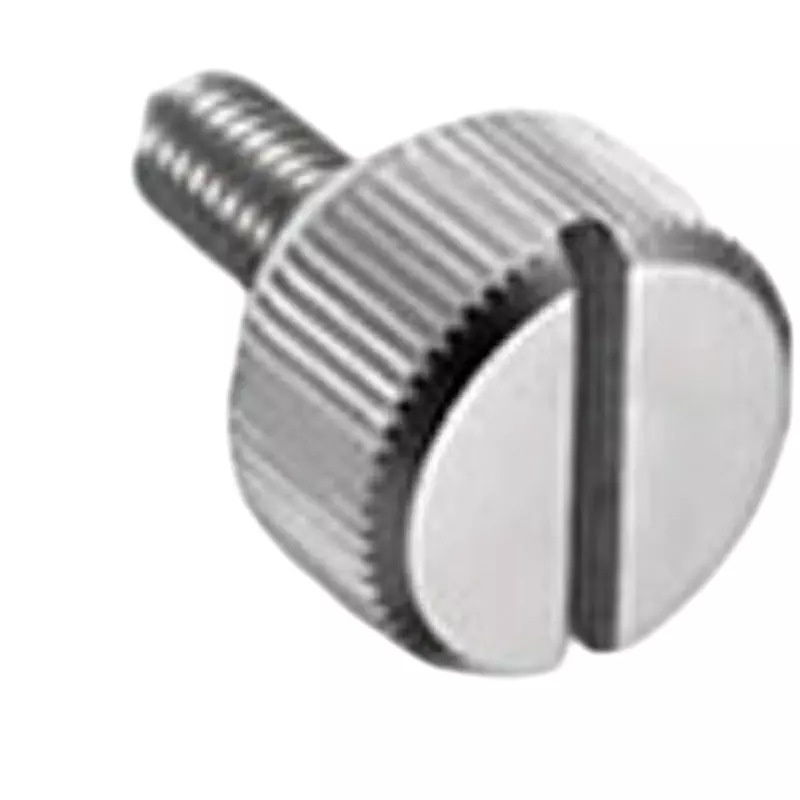

| Type of Product | Knurled Knob |
| Model No | A-1176-S-1 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Type of Product |
Knurled Knob |
Model No |
A-1176-S-1 |
Material |
Mounting Part: Stainless Steel (SUS303) |
Type |
Round Type |
Included Components |
1 Nylon Washer |
Monotaro ID |
61103507 |
Weight |
25 g |

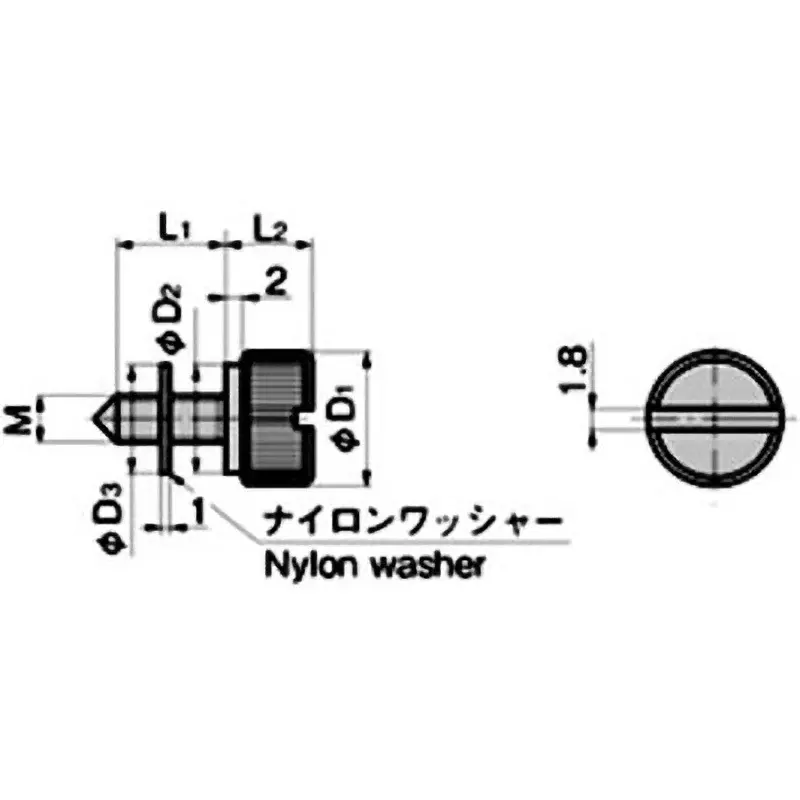

Dimensions L1 (mm) |
12 |
TAKIGEN Code |
3951 |
Dimensions l2 (mm) |
12 |
Surface Finish Type |
Body: Mirror Buff Polishing, Mounting Part: Mirror Buff Polishing |
Dimension d2 (Φmm) |
12 |
Dimension d3 (Φmm) |
12 |
Dimension d1 (Φmm) |
18 |
Connection to Equipment |
Male Screw |
Dimension M |
M6 |
Main Unit Material |
Stainless Steel (SUS303) |
Mounting Length (mm) |
12 |
Nominal Size |
Screw: M6 |
Import Country |
Direct Import from Japan |
