| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG CO., LTD |
| Type of Product | Large Catch Clip |
| Model No | C-367-B-3 |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Type of Product |
Large Catch Clip |
Model No |
C-367-B-3 |
Material |
Steel Plate Cold Commercial (SPCC) |
Monotaro ID |
61122346 |
Weight |
350 g |

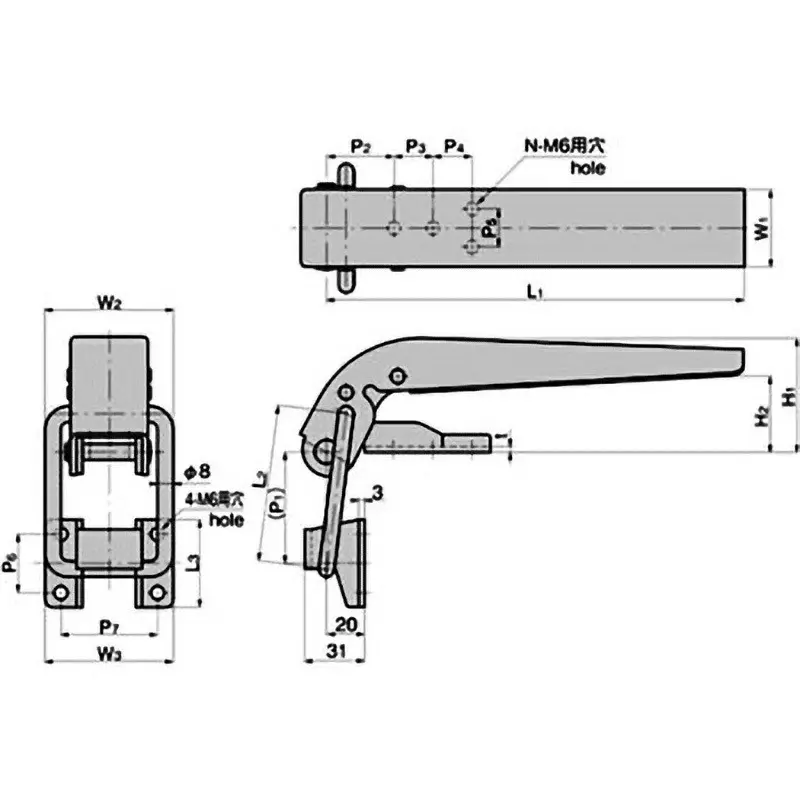

Dimensions L1 (mm) |
115 |
Dimension L3 (mm) |
35 |
TAKIGEN Code |
22278 |
Dimensions W2 (mm) |
55 |
Dimensions l2 (mm) |
62 |
Surface Finish Type |
Zinc Plating Chromate Treatment (MFZn-C) |
Dimensions T (mm) |
2 |
Dimensions H1 (mm) |
45.5 |
Dimension W3 (mm) |
55 |
Dimensions H2 (mm) |
31 |
Dimension P1 (mm) |
34.5 |
Dimension n (mm) |
2 |
Dimension P3 (mm) |
20 |
Dimension P6 (mm) |
20 |
Dimension P7 (mm) |
40 |
Import Country |
Direct Import from Japan |
