| Country of Origin | Japan |
| Name of Manufacturer/Packer/Importer | TAKIGEN MFG CO., LTD |
| Type of Product | Corner Catch Clip With Lock |
| Model No | C-1157-1-B |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
TAKIGEN MFG CO., LTD |
Type of Product |
Corner Catch Clip With Lock |
Model No |
C-1157-1-B |
Material |
Cold Rolled Stainless Steel Sheet (SUS304) |
Monotaro ID |
61125137 |
Weight |
345 g |
Thread Diameter |
M5 |

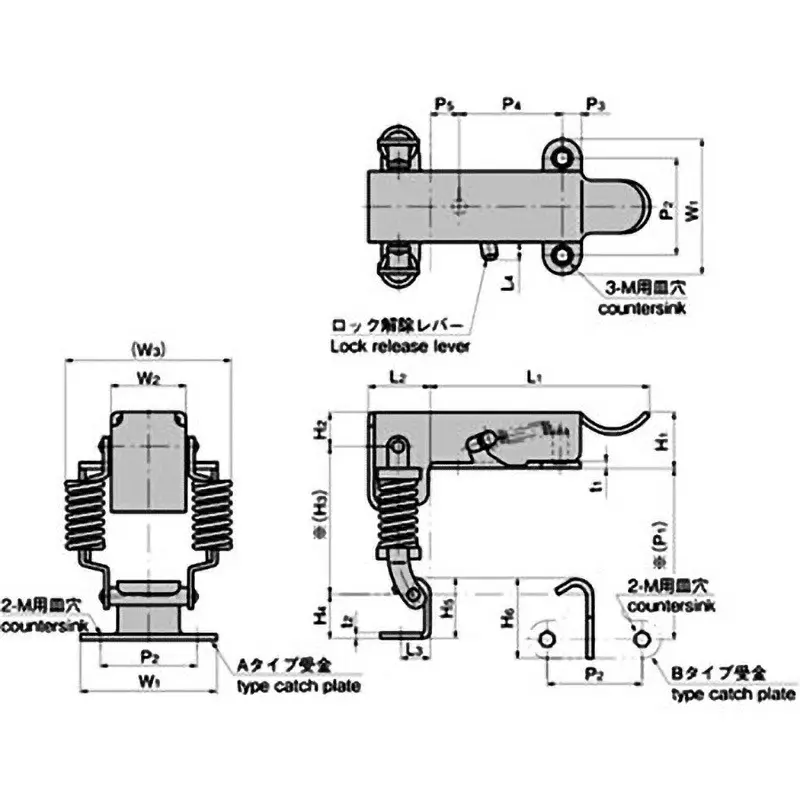

Dimensions L1 (mm) |
87 |
Dimension L3 (mm) |
12 |
Dimensions W2 (mm) |
29 |
Dimensions l2 (mm) |
25 |
Dimensions l4 (mm) |
7 |
Dimensions H1 (mm) |
23 |
Dimension W3 (mm) |
64.5 |
Dimensions H2 (mm) |
14 |
Dimension P1 (mm) |
72 |
Dimension P3 (mm) |
8 |
Dimension t1 (mm) |
3 |
Dimension H3 (mm) |
62 |
Dimension P5 (mm) |
10 |
Dimension P4 (mm) |
42 |
Dimension H4 (mm) |
19 |
Import Country |
Direct Import from Japan |
