Ships within 19 days
View
View
View
View
| Type of Product | PCB Connection Pin Header |
| Series | DF3 |
| Model No | DF3-6P-2DS(01) |
| Pack of | 5 Pcs |
Type of Product |
PCB Connection Pin Header |
Series |
DF3 |
Model No |
DF3-6P-2DS(01) |
Pack of |
5 Pcs |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Hirose |
Connector Systems |
Board to board, wire to board |
Import Country |
Direct Import from Japan |
Monotaro ID |
68065167 |
Cell Spacing (mm) |
2 |
Specifications |

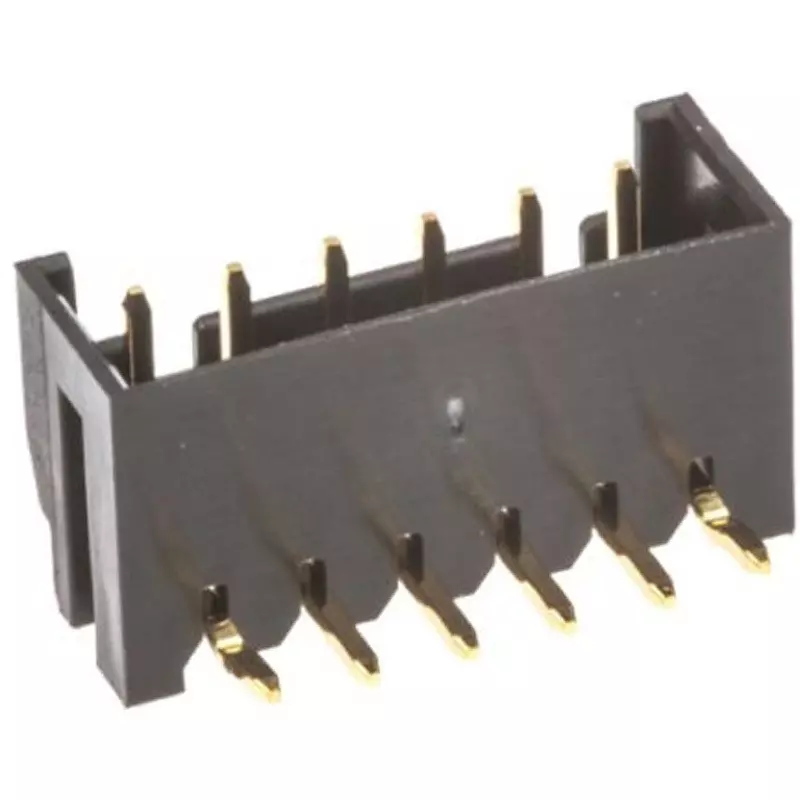

Hirose Electric DF3 Series 2 mmPitch Through Hole PCB Mount Pin Header Connector. DF3 Series 2 mmPitch Through Hole PCB Mount Pin Header Connector. This DF3 series 2 mmpitch pin header is available in vertical or right angle mounting and is available with tin or gold plating (contacts with (01) at the end of the part number). . PCB through hole diameter 0.8 mm |
RoHS Directive |
Correspondence |
Connection Direction |
Right angle |
Rated Voltage (V) |
250 |
Surface Treatment Contact |
Gold |
Shrouded/Unshrouded |
Shroud |
Rated Current (A) |
3 |
Number Of Lines |
1 |
Connection Method |
Solder |
No. of Pole |
6 |
