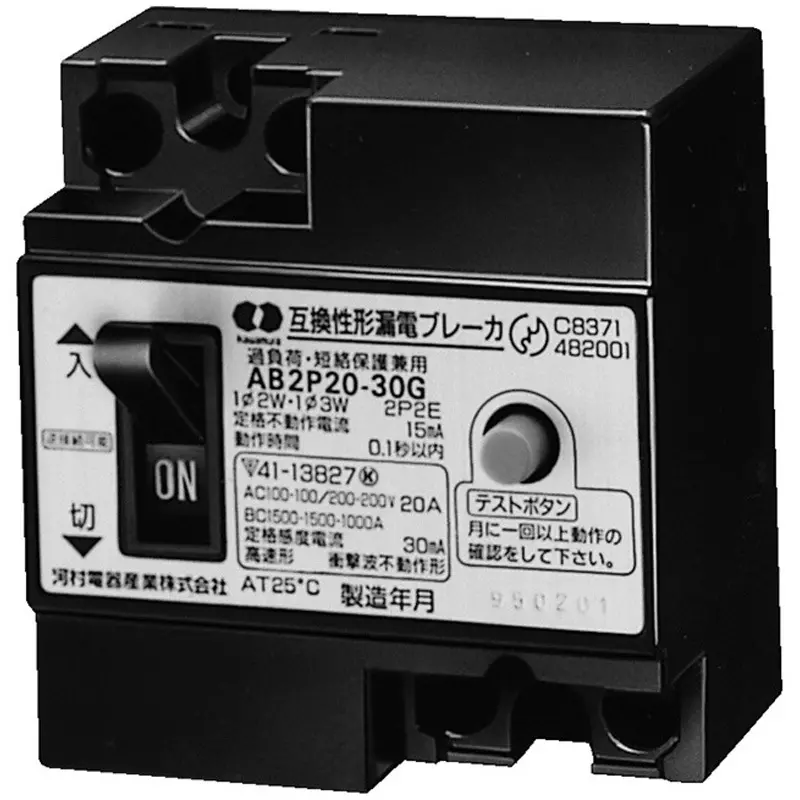

| Type of Product | Earth Leakage Breaker |
| Model No | AB2P20-30G |
| Dimension | 68x70x40 mm |
| Operating Time | Within 0.1 seconds |
Type of Product |
Earth Leakage Breaker |
Model No |
AB2P20-30G |
Dimension |
68x70x40 mm |
Operating Time |
Within 0.1 seconds |
Phase / Wire Type |
1Φ2 W |
Rated Breaking Capacity (kA) |
1.5(AC 100 V)/1.5(AC 100/200 V)/1(AC 200 V) |
Mass (Kg) |
0.16 |
Rated Voltage (V) |
AC100-100/200-200 |
Rated Sensitivity Current (mA) |
30 |
Monotaro ID |
52734806 |
Rated Current (A) |
20 |
Country of Origin |
Japan |
Application |
JIS compatible type / with OC |
Connection Type |
Solderless terminal (M5) |
Reverse Connection |
Possible |
Included Components |
2 terminal covers / 2 mounting screws (for both iron and wood) |
Name of Manufacturer/Packer/Importer |
Kawamura Electric Industry Co., Ltd. |
Import Country |
Direct Import from Japan |
No. of Poles / Elements |
2P2E |
Connectable Wire (mm2) |
8 |
Outer Dimensions (mm) |
68x70x40 |
Tripper Type |
Thermal type |
Outer Dimensions |
68x70x40 mm |
Safety Standard |
Electrical Appliance and Material Safety Law |
