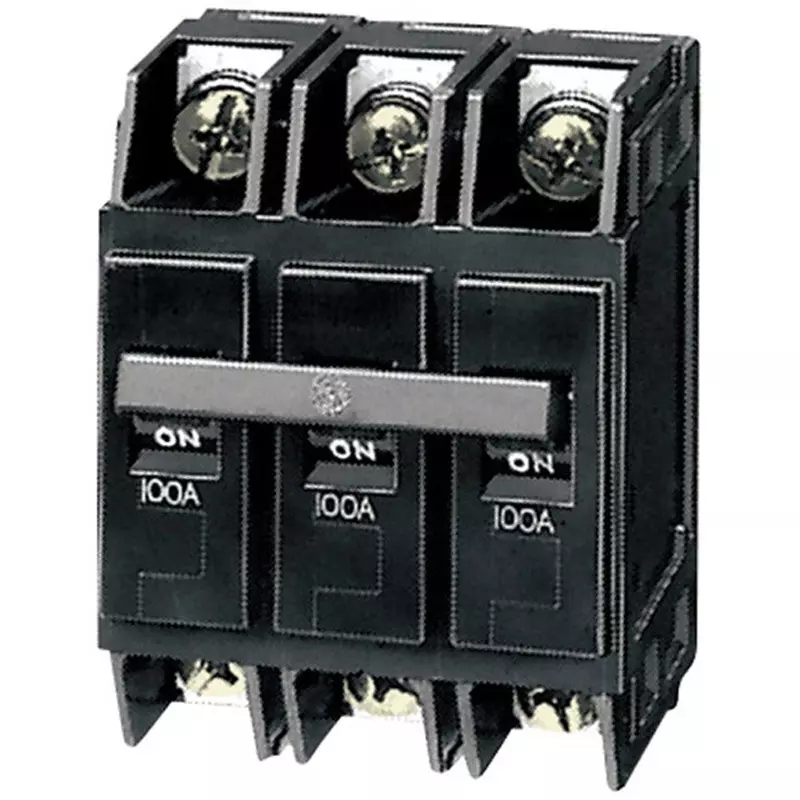

| Type of Product | No-Fuse Breaker |
| Model No | NL103R-60M |
| Rated Breaking Capacity (kA) | 5(AC 200 V)/2.5(AC415V)/5(DC125V) |
| Frame (AF) | 100 |
Type of Product |
No-Fuse Breaker |
Model No |
NL103R-60M |
Rated Breaking Capacity (kA) |
5(AC 200 V)/2.5(AC415V)/5(DC125V) |
Frame (AF) |
100 |
Mass (Kg) |
0.65 |
Monotaro ID |
52736617 |
Rated Current (A) |
60 |
Country of Origin |
Japan |
Application |
Agreement size type |
Rated Insulation Voltage (V) |
AC500/DC125 |
Connection Type |
Crimp terminal (M8) |
Reverse Connection |
Possible |
Included Components |
4 clasps |
Name of Manufacturer/Packer/Importer |
Kawamura Electric Industry Co., Ltd. |
Import Country |
Direct Import from Japan |
Specifications |
Mounting pitch when using clasp |
No. of Poles / Elements |
3P3E |
Connectable Wire (mm2) |
60 |
Outer Dimensions (mm) |
75x95x60 |
Tripper Type |
Thermodynamic electromagnetic |
