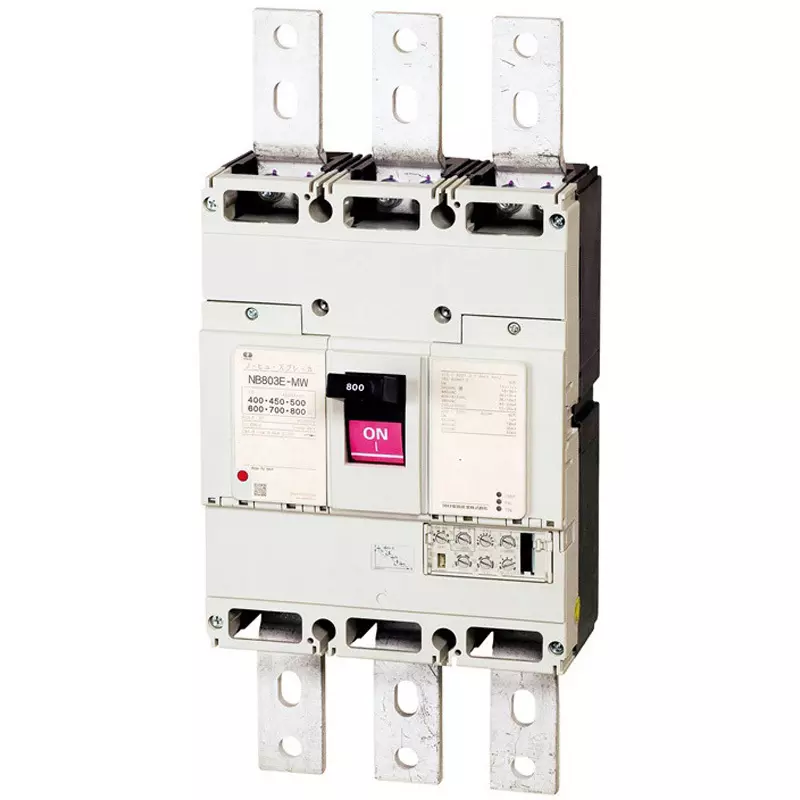

| Type of Product | No-Fuse Breaker |
| Model No | NB803E-MW |
| Rated Breaking Capacity (kA) | 50(AC 200 V)/50(AC230V)/40(AC380V)/36(AC400V)/36(AC415V)/36(AC440V)/18(AC500V) |
| Frame (AF) | 800 |
Type of Product |
No-Fuse Breaker |
Model No |
NB803E-MW |
Rated Breaking Capacity (kA) |
50(AC 200 V)/50(AC230V)/40(AC380V)/36(AC400V)/36(AC415V)/36(AC440V)/18(AC500V) |
Frame (AF) |
800 |
Mass (Kg) |
10.9 |
Monotaro ID |
52741833 |
Rated Current (A) |
400/450/500/600/700/800 adjustable |
Country of Origin |
Japan |
Application |
Economic form |
Rated Insulation Voltage (V) |
AC690 |
Connection Type |
Bar terminal (M12) |
Reverse Connection |
Possible |
Included Components |
4 mounting screws (for iron plate) / 2 insulation barriers |
Name of Manufacturer/Packer/Importer |
Kawamura Electric Industry Co., Ltd. |
Import Country |
Direct Import from Japan |
No. of Poles / Elements |
3P3E |
Connectable Wire (mm2) |
325x2 |
Outer Dimensions (mm) |
210x275x103 |
Tripper Type |
Electronic |
