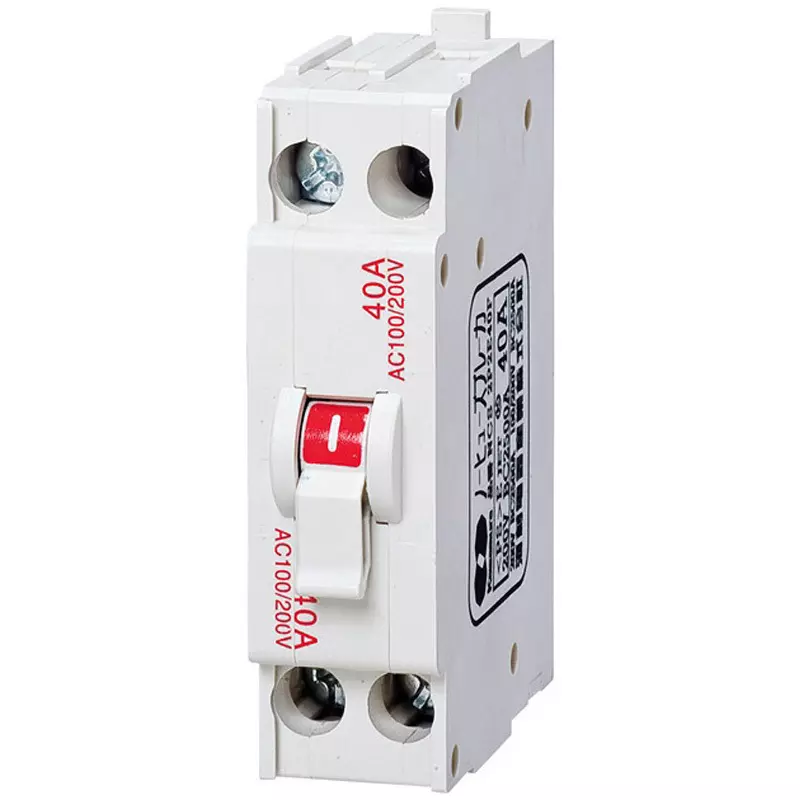

| Type of Product | No-Fuse Breaker |
| Model No | NCS2P2E40F |
| Rated Breaking Capacity (kA) | 2.5(AC 200 V)/(2.5)(AC 100/200 V) |
| Frame (AF) | 50 |
Type of Product |
No-Fuse Breaker |
Model No |
NCS2P2E40F |
Rated Breaking Capacity (kA) |
2.5(AC 200 V)/(2.5)(AC 100/200 V) |
Frame (AF) |
50 |
Mass (Kg) |
0.08 |
Rated Voltage (V) |
AC200 |
Monotaro ID |
52747293 |
Rated Current (A) |
40 |
Country of Origin |
Japan |
Application |
Smart size / dedicated to late-night power equipment (flat handle) |
Connection Type |
Solderless terminal (M5) |
Reverse Connection |
Impossible |
Included Components |
2 terminal covers |
Name of Manufacturer/Packer/Importer |
Kawamura Electric Industry Co., Ltd. |
Import Country |
Direct Import from Japan |
Specifications |
Smart size for nighttime power equipment (flat handle) |
No. of Poles / Elements |
2P2E |
Connectable Wire (mm2) |
8 |
Outer Dimensions (mm) |
20x70x50 |
Tripper Type |
Thermodynamic electromagnetic |
Outer Dimensions |
20x70x50 mm |
Safety Standard |
Electrical Appliance and Material Safety Law |
