| Type of Product | Earth Leakage Breaker |
| Model No | GE2233P150ADVH |
| Operating Time | (Time extension type) 0.3sec |
| Phase / Wire Type | 3Φ3 W, 1Φ3 W, 1Φ2 W |
Type of Product |
Earth Leakage Breaker |
Model No |
GE2233P150ADVH |
Operating Time |
(Time extension type) 0.3sec |
Phase / Wire Type |
3Φ3 W, 1Φ3 W, 1Φ2 W |
Rated Breaking Capacity (kA) |
JIS C 8201-2-2 Ann2<br>18(AC415), 35(AC100, AC200) |
Overcurrent Tripper Type |
Thermal-electromagnetic |
Mass (Kg) |
1.63 |
Type |
Time delay |
Rated Sensitivity Current (mA) |
100/200/500 switching |
Protective Function |
Leakage / overload / short circuit protection |
Monotaro ID |
45181026 |
Rated Current (A) |
150 (reference ambient temperature 40℃) |
Country of Origin |
Japan |
Connection Type |
Surface type |
Reverse Connection |
Impossible |
Terminal Structure |
M8 for crimp terminal |
Included Components |
Terminal cover, mounting screw, wood screw, sealing plate, terminal cover set screw, crimp terminal |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Import Country |
Direct Import from Japan |
Specifications |
For motor protection |

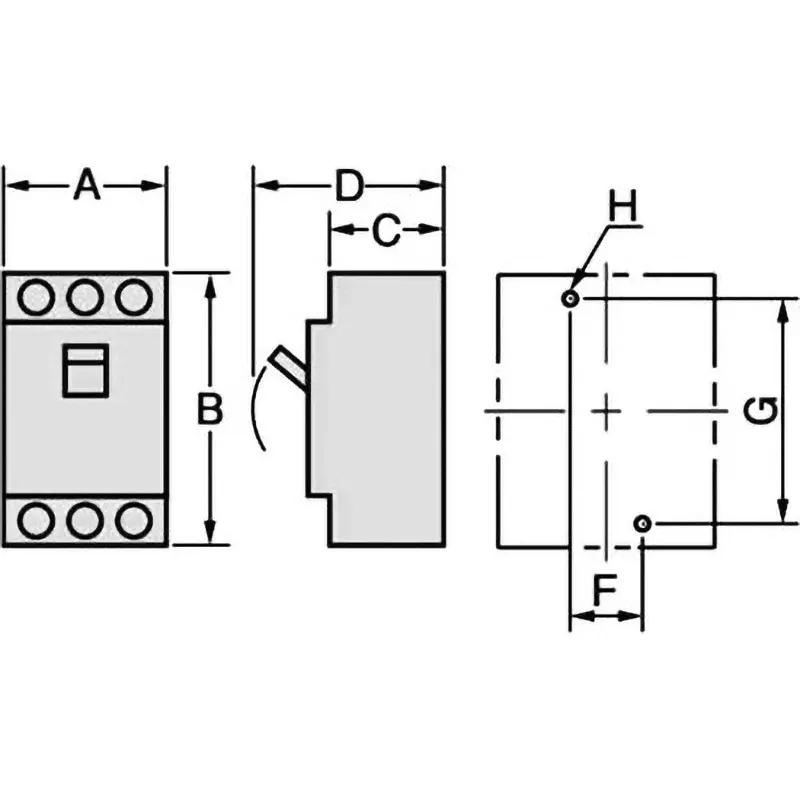

Dimension B (Φmm) |
165 |
Dimension A (Φmm) |
105 |
Dimension d |
90 mm |
Dimension C |
68 mm |
Dimension F (Φmm) |
35 |
Dimension G |
126 mm |
