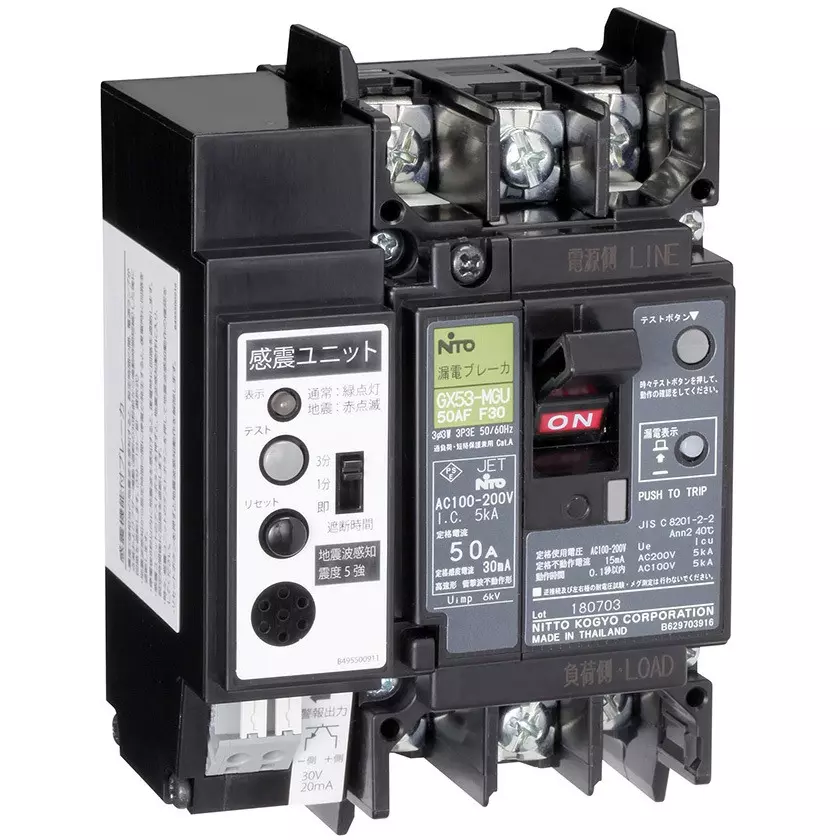

| Type of Product | Earth Leakage Breaker |
| Sensitivity | Sensitivity: Earthquake intensity 5+ equivalent, operates at 250 gal cycle 0.3 s, 0.5 s, 0.7 s, does not operate at 80 gal cycle 0.3 s, 0.5 s, 0.7 s and 250 gal cycle 0.1 s |
| Model No | GX53-MGU3P50AF30 |
| Phase / Wire Type | 3Φ3W・1Φ3W・1Φ2W |
Type of Product |
Earth Leakage Breaker |
Sensitivity |
Sensitivity: Earthquake intensity 5+ equivalent, operates at 250 gal cycle 0.3 s, 0.5 s, 0.7 s, does not operate at 80 gal cycle 0.3 s, 0.5 s, 0.7 s and 250 gal cycle 0.1 s |
Model No |
GX53-MGU3P50AF30 |
Phase / Wire Type |
3Φ3W・1Φ3W・1Φ2W |
Rated Breaking Capacity (kA) |
JIS C 8201-2-1 Ann2<br>5(AC100, AC200) |
Overcurrent Tripper Type |
Thermal-electromagnetic |
Rated Voltage (V) |
AC100-200 |
Rated Sensitivity Current (mA) |
30 |
Protective Function |
Protects against earthquakes, electrical leakage, overload, and short circuits |
Monotaro ID |
12608629 |
Rated Current (A) |
50 (reference ambient temperature 40℃) |
Country of Origin |
Japan |
Outer Dimension c (mm) |
60 |
Outer Dimension b (mm) |
98 |
Outer Dimension d (mm) |
78 |
Outer Dimension a (mm) |
75 |
Applicable Standard |
JIS C 8201-2-2 Ann2 |
Reverse Connection |
Impossible |
Terminal Structure |
Wire clamp terminal M5 |
Included Components |
Terminal cover, sealing plate, terminal cover set screw, mounting base, wood screw, terminal barrier, specification label |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Import Country |
Direct Import from Japan |
Specifications |
Break time: 3 minutes/1 minute/immediate switching Reset input: Non-voltage a contact DC5V 0.1A |
Alarm Output |
Buzzer sounds and alarm is output only when the power lamp is flashing, non-voltage contact DC30V 20mA |
Display |
Earthquake-sensing cutoff display: If the breaker detects earthquake waves and cuts off the power, the lamp lights up orange when the breaker is turned on. |
Connectable Wire (mm2) |
Up to 22 |
Pack of |
1 Piece |
