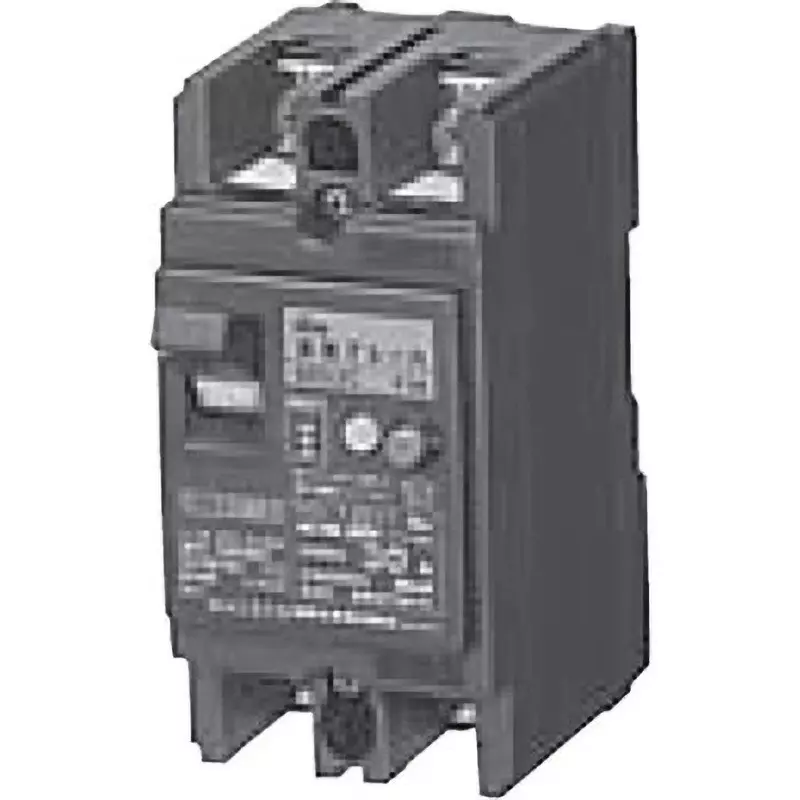

| Type of Product | Earth Leakage Breaker |
| Model No | GE52C2P15AF30 |
| Phase / Wire Type | 1Φ2W |
| Rated Breaking Capacity (kA) | 2.5(AC100, AC200) |
Type of Product |
Earth Leakage Breaker |
Model No |
GE52C2P15AF30 |
Phase / Wire Type |
1Φ2W |
Rated Breaking Capacity (kA) |
2.5(AC100, AC200) |
Overcurrent Tripper Type |
Fully electromagnetic |
Mass (Kg) |
0.4 |
Rated Voltage (V) |
AC100, AC200 (for both) |
Rated Sensitivity Current (mA) |
(High-speed type) 30 |
Protective Function |
Leakage / overload / short circuit protection |
Monotaro ID |
45179827 |
Rated Current (A) |
15 |
Country of Origin |
Japan |
Reference Ambient Temperature |
40℃ |
Applicable crimp terminal |
R2-5 to CB22-5S |
Connection Type |
Surface type |
Reverse Connection |
Impossible |
Dimensions A (mm) |
50 |
Dimensions B (mm) |
98 |
Terminal Structure |
Wire clamp terminal M5 |
Included Components |
Terminal cover, mounting screw, wood screw, sealing plate, terminal cover set screw, rail holder, rail holder spring |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Import Country |
Direct Import from Japan |
No. of Poles / Elements |
2P2E |
Dimensions C (mm) |
60 |
High-Speed Operation Time (sec) |
Within 0.1 |
Dimensions D (mm) |
78 |
Pack of |
1 Piece |
