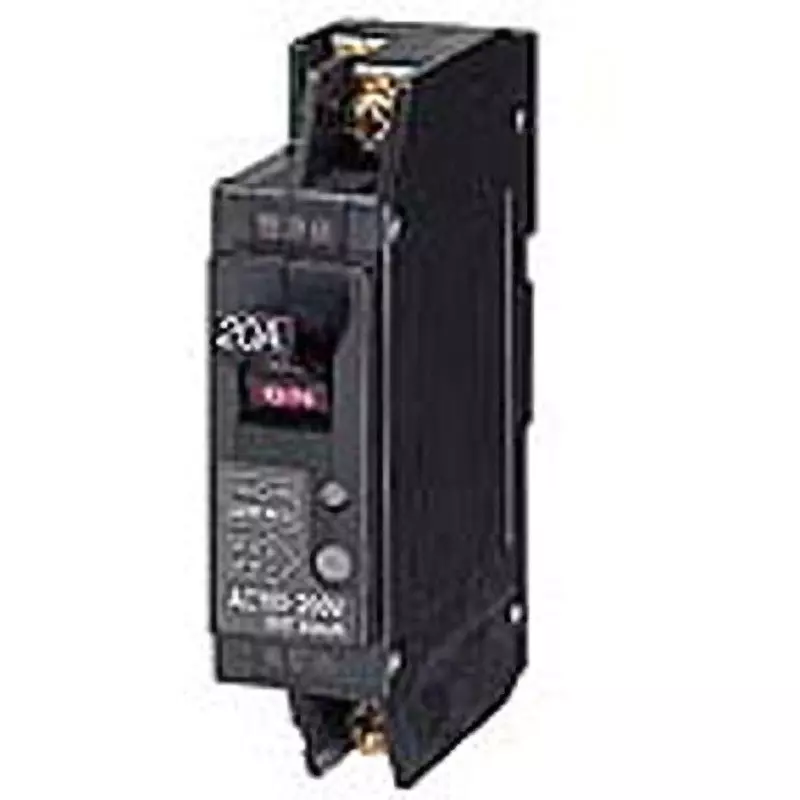

| Type of Product | Earth Leakage Breaker |
| Model No | GX52A2P15AF30 |
| Phase / Wire Type | 1Φ2W |
| Rated Breaking Capacity (kA) | 2.5 (AC200), 5 (AC100, AC100 / AC200 (AA)) |
Type of Product |
Earth Leakage Breaker |
Model No |
GX52A2P15AF30 |
Phase / Wire Type |
1Φ2W |
Rated Breaking Capacity (kA) |
2.5 (AC200), 5 (AC100, AC100 / AC200 (AA)) |
Frame (AF) |
50 |
Overcurrent Tripper Type |
Thermal-electromagnetic |
Mass (Kg) |
0.17 |
Rated Voltage (V) |
AC100, AC100 / AC200 (AA), AC200 (shared) |
Rated Sensitivity Current (mA) |
30 |
Protective Function |
Leakage / overload / short circuit protection |
Monotaro ID |
45182295 |
Rated Current (A) |
15 |
Country of Origin |
Japan |
Applicable crimp terminal |
R2-5 to R5.5-5, 8-5NS(JST), R8-5S(NTM) |
Reverse Connection |
Impossible |
Dimensions A (mm) |
25 |
Dimensions B (mm) |
95 |
Terminal Structure |
Wire clamp terminal M5 |
Included Components |
Mounting bracket |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Import Country |
Direct Import from Japan |
No. of Poles / Elements |
2P2E |
Dimensions C (mm) |
60 |
High-Speed Operation Time (sec) |
Within 0.1 |
Dimensions D (mm) |
78 |
Connectable Wire (mm2) |
Φ1.6mm to 8mm, 2 to 8 |
Pack of |
1 Piece |
