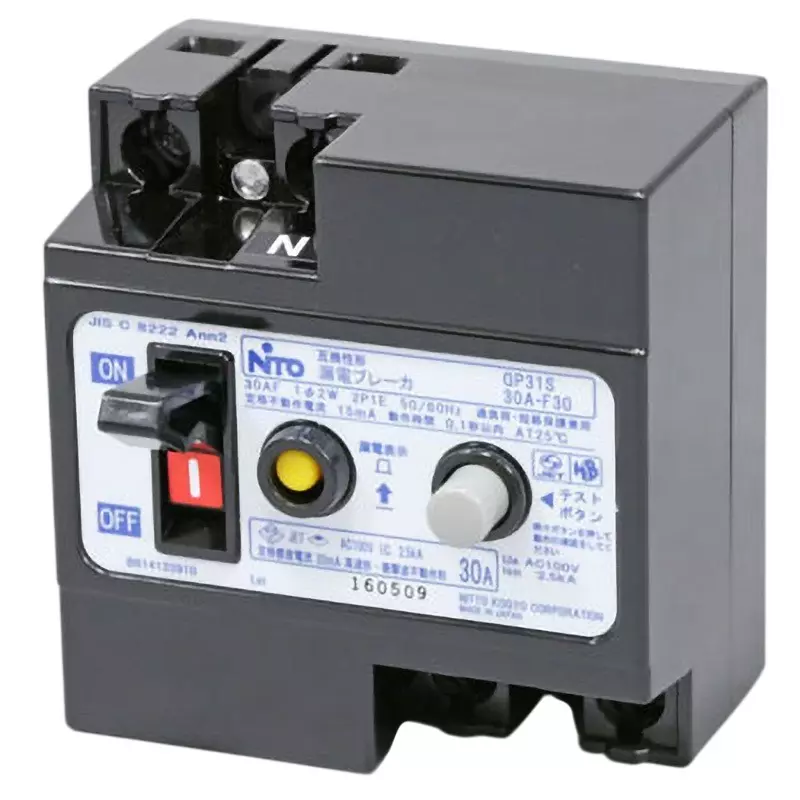

| Type of Product | Earth Leakage Breaker |
| Model No | GP31S2P30AF30 |
| Phase / Wire Type | 1Φ2W |
| Rated Breaking Capacity (kA) | 2.5 |
Type of Product |
Earth Leakage Breaker |
Model No |
GP31S2P30AF30 |
Phase / Wire Type |
1Φ2W |
Rated Breaking Capacity (kA) |
2.5 |
Frame (AF) |
30 |
Overcurrent Tripper Type |
Heat |
Mass (Kg) |
0.16300000000000001 |
Rated Voltage (V) |
AC100 |
Rated Sensitivity Current (mA) |
30 |
Protective Function |
Leakage / overload / short circuit protection |
Monotaro ID |
45181972 |
Rated Current (A) |
30(AT 25℃) |
Country of Origin |
Japan |
Reverse Connection |
Possible |
Dimensions A (mm) |
68 |
Dimensions B (mm) |
70 |
Terminal Structure |
Solderless terminal |
Included Components |
Terminal cover, wood screw |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Import Country |
Direct Import from Japan |
JIS Standard |
JIS C 8222 Ann2 |
No. of Poles / Elements |
2P1E |
Dimensions C (mm) |
39.5 |
High-Speed Operation Time (sec) |
Within 0.1 |
Dimensions D (mm) |
56 |
Connectable Wire (mm2) |
Φ1.6mm to Φ2.6mm, 5.5 to 8 |
Pack of |
1 Piece |
