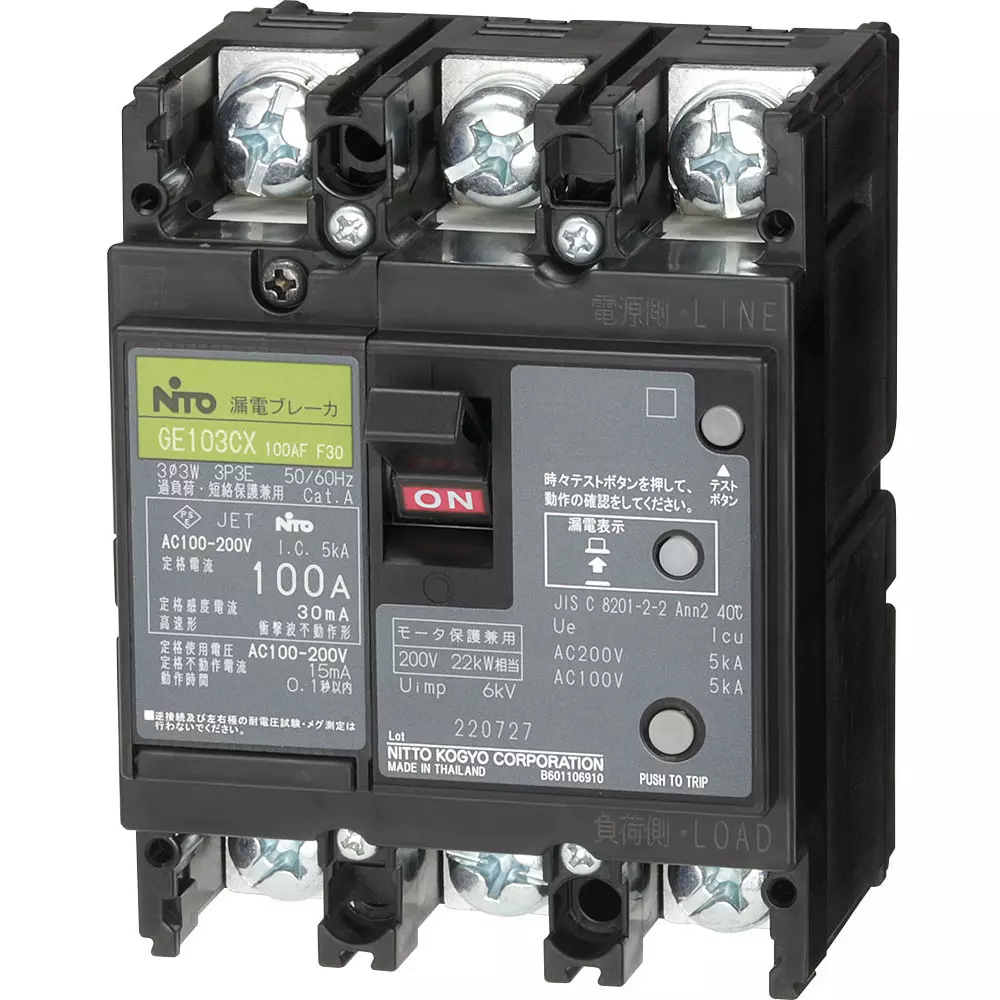

| Type of Product | Earth Leakage Breaker |
| No. of Pole | 3P3E |
| Model No | GE103CX3P75AF30 |
| Phase / Wire Type | 3Φ3 W, 1Φ3 W, 1Φ2 W |
Type of Product |
Earth Leakage Breaker |
No. of Pole |
3P3E |
Model No |
GE103CX3P75AF30 |
Phase / Wire Type |
3Φ3 W, 1Φ3 W, 1Φ2 W |
Rated Breaking Capacity (kA) |
JIS(Icu)：5 at 200 V AC |
Frame (AF) |
100 |
Overcurrent Tripper Type |
Complete electromagnetic type |
Rated Sensitivity Current (mA) |
30 |
Protective Function |
Protects against electric leakage, overload, short circuit and motor |
Monotaro ID |
6540156 |
Rated Current (A) |
75 |
Country of Origin |
Japan |
Applicable crimp terminal |
R5.5-8 to CB60-8 |
Rated operating voltage (AC V) |
100-200 for both |
Reverse Connection |
Impossible |
Terminal Structure |
M8 for crimp terminal |
Rated Breaking Capacity |
JIS(Icu)：5 kA at 100 V AC |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Import Country |
Direct Import from Japan |
External Dimensions (width x depth x height) (mm) |
75x98x78(60) |
Operation Time |
Within 0.1 Sec |
JIS Standard |
JIS C 8201-2-2 Ann2 |
