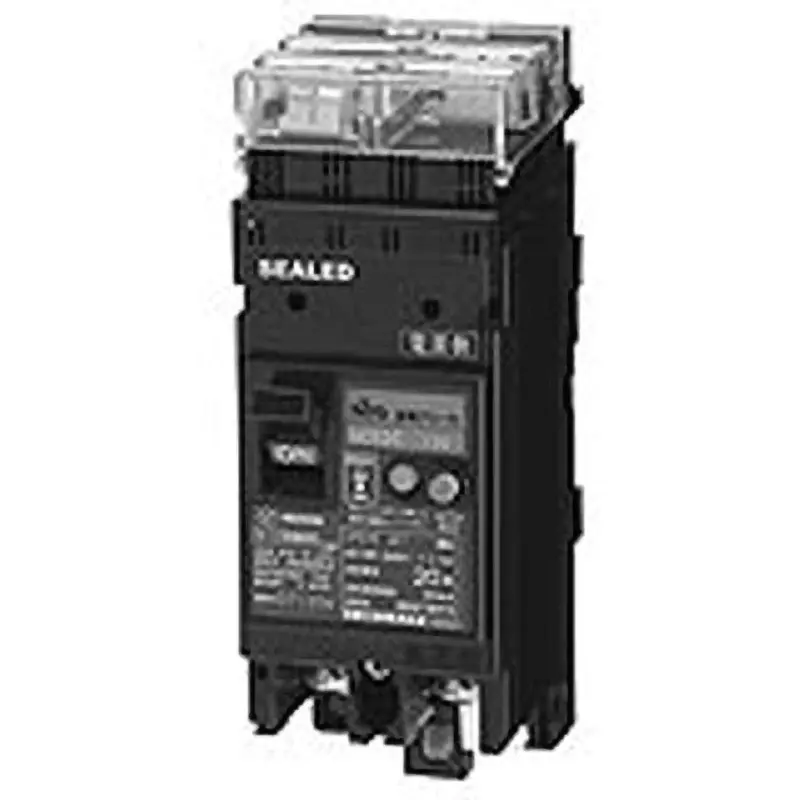

| Type of Product | Plug-in Unit |
| No. of Pole | 2P2E |
| Model No | GE52CPS2P50AF100 |
| Phase / Wire Type | 1Φ2 W |
Type of Product |
Plug-in Unit |
No. of Pole |
2P2E |
Model No |
GE52CPS2P50AF100 |
Phase / Wire Type |
1Φ2 W |
Rated Breaking Capacity (kA) |
2.5 |
Frame (AF) |
50 |
Overcurrent Tripper Type |
Fully electromagnetic |
Mass (Kg) |
0.46 |
Rated Voltage (V) |
AC100, AC200 (for both) |
Rated Sensitivity Current (mA) |
(High-speed type) 100 |
Protective Function |
Leakage / overload / short circuit protection |
Monotaro ID |
45174762 |
Rated Current (A) |
50 |
Country of Origin |
Japan |
Applicable crimp terminal |
R2-5 to CB22-5S |
Reverse Connection |
Impossible |
Terminal Structure |
(Power supply side) Plug-in terminal, (Load side) Wire clamp terminal + M5 |
Included Components |
Terminal cover |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Import Country |
Direct Import from Japan |
Dimension B (Φmm) |
146 |
Dimension A (Φmm) |
50 |
Dimension d |
80 mm |
Dimension C |
62 mm |
Operation Time |
Within 0.1 Sec |
