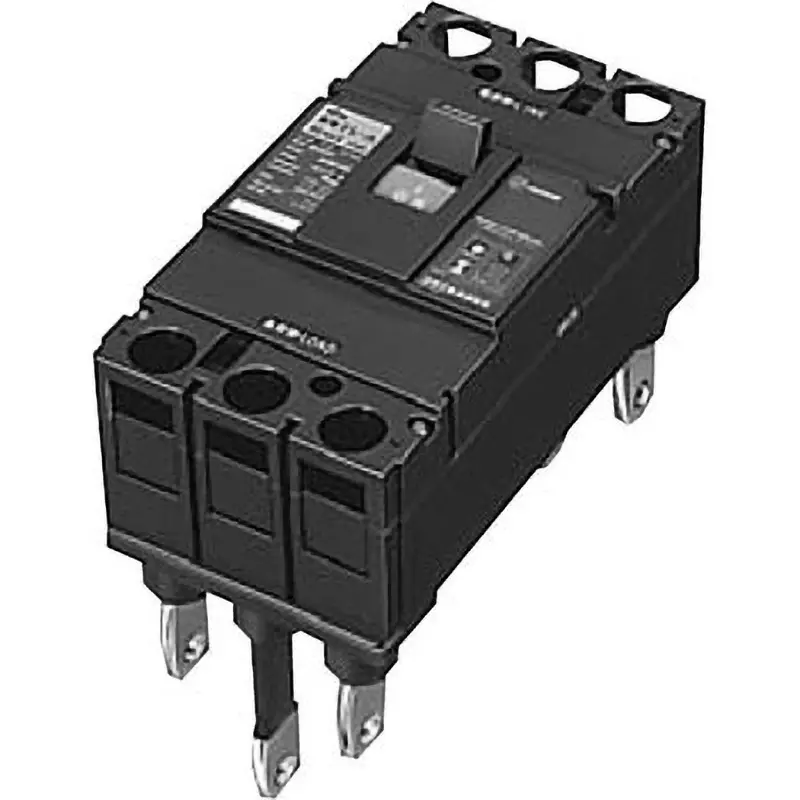

| Type of Product | Earth Leakage Breaker |
| No. of Pole | 3P3E |
| Model No | GE403AB3P350AF30H |
| Phase / Wire Type | 3Φ3 W, 1Φ3 W, 1Φ2 W |
Type of Product |
Earth Leakage Breaker |
No. of Pole |
3P3E |
Model No |
GE403AB3P350AF30H |
Phase / Wire Type |
3Φ3 W, 1Φ3 W, 1Φ2 W |
Rated Breaking Capacity (kA) |
25(AC415), 50(AC100, AC200) |
Frame (AF) |
400 |
Overcurrent Tripper Type |
Thermal-electromagnetic |
Mass (Kg) |
7.6 |
Rated Voltage (V) |
AC100, AC200, AC415 (shared) |
Rated Sensitivity Current (mA) |
(High-speed type) 30 |
Protective Function |
Leakage / overload / short circuit protection |
Monotaro ID |
45180572 |
Rated Current (A) |
350 |
Country of Origin |
Japan |
Applicable crimp terminal |
R60-12 to R325-12S/325-12 |
Connection Type |
Back side |
Reverse Connection |
Impossible |
Terminal Structure |
Bar terminal M12 |
Included Components |
Terminal cover, terminal screw, mounting screw, wood screw, ground barrier, sealing screw, terminal cover set screw |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Import Country |
Direct Import from Japan |
Operation Time |
Within 0.1 Sec |
JIS Standard |
JIS C 8201-2-2 Ann2 |
