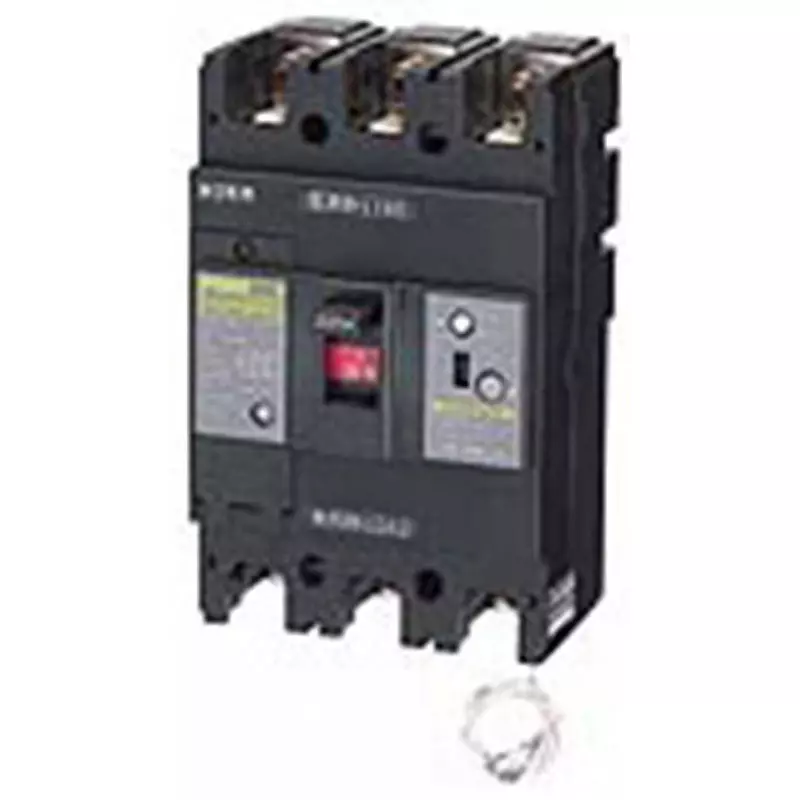

| Type of Product | Single-Phase Neutral Line Leakage Breaker |
| Model No | GE408NA3P400AFV |
| Operating Time | (High-speed type) Within 0.1 sec (Time delay type) 0.3 sec |
| Phase / Wire Type | 1Φ3 W |
Type of Product |
Single-Phase Neutral Line Leakage Breaker |
Model No |
GE408NA3P400AFV |
Operating Time |
(High-speed type) Within 0.1 sec (Time delay type) 0.3 sec |
Phase / Wire Type |
1Φ3 W |
Rated Breaking Capacity (kA) |
JIS C 8201-2-2 Ann2<br> 50 (AC100/200V for AA batteries) |
Overcurrent Tripper Type |
Thermal-electromagnetic |
Mass (Kg) |
5.7 |
Rated Sensitivity Current (mA) |
100/200/500 switching |
Protective Function |
Leakage / overload / short circuit / AA neutral line open phase protection |
Monotaro ID |
45179687 |
Rated Current (A) |
400 (reference ambient temperature 40°C) |
Country of Origin |
Japan |
Connection Type |
Surface type |
Reverse Connection |
Impossible |
Terminal Structure |
Bar terminal M12 |
Included Components |
Terminal cover, terminal screw, mounting screw, wood screw, sealing screw, terminal cover set screw |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Import Country |
Direct Import from Japan |
Dimension B (Φmm) |
257 |
Dimension A (Φmm) |
140 |
Dimension d |
130.5 mm |
Dimension C |
103 mm |
Dimension F (Φmm) |
44 |
Dimension G |
194 mm |
Dimension E (Φmm) |
343 mm |
