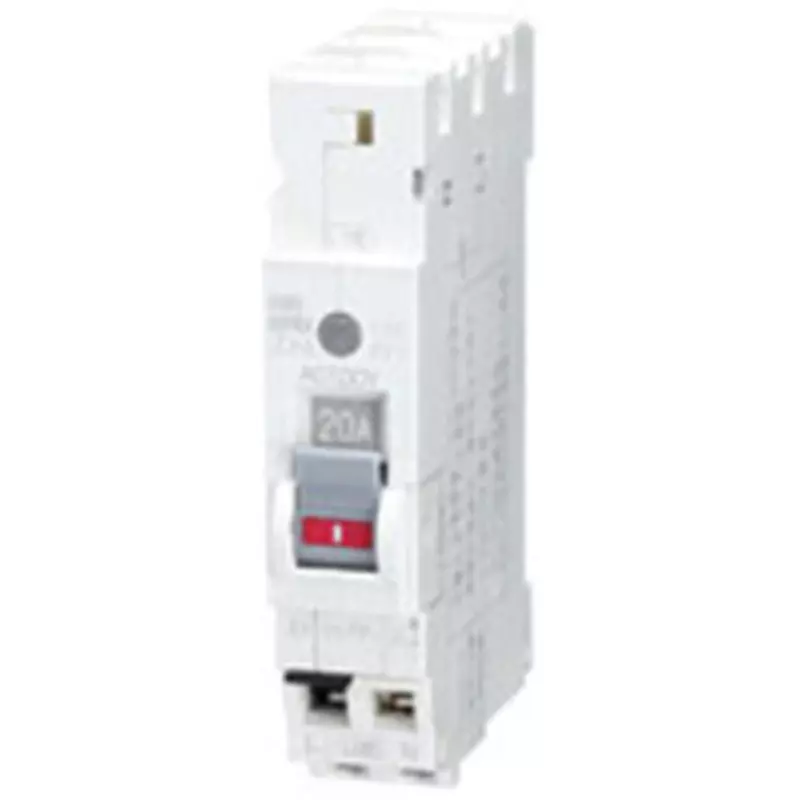

| Type of Product | Earth Leakage Breaker |
| Model No | PG32A2P30AF15 |
| Phase / Wire Type | 1Φ2W |
| Rated Breaking Capacity (kA) | 2.5 (AC100, AC100 / AC200 (AA)) |
Type of Product |
Earth Leakage Breaker |
Model No |
PG32A2P30AF15 |
Phase / Wire Type |
1Φ2W |
Rated Breaking Capacity (kA) |
2.5 (AC100, AC100 / AC200 (AA)) |
Frame (AF) |
30 |
Overcurrent Tripper Type |
Thermal-electromagnetic |
Mass (Kg) |
9.5000000000000001E-2 |
Rated Voltage (V) |
AC100, AC100 / AC200 (AA) (for both) |
Rated Sensitivity Current (mA) |
15 |
Protective Function |
Leakage / overload / short circuit protection |
Monotaro ID |
45178192 |
Rated Current (A) |
30 |
Country of Origin |
Japan |
Reverse Connection |
Impossible |
Dimensions A (mm) |
18 |
Dimensions B (mm) |
88 |
Terminal Structure |
(Power side) Plug-in terminal, (Load side) Solderless terminal |
Included Components |
Terminal cover |
Name of Manufacturer/Packer/Importer |
Nitto Kogyo Co., Ltd. |
Import Country |
Direct Import from Japan |
JIS Standard |
JIS C 8201-2-2 Ann2・JIS C 8222 Ann2 |
No. of Poles / Elements |
2P2E |
Dimensions C (mm) |
44 |
High-Speed Operation Time (sec) |
Within 0.1 |
Dimensions D (mm) |
54.5 |
Connectable Wire (mm2) |
max.8 |
Pack of |
1 Piece |
