| Type of Product | Earth Leakage Breaker |
| No. of Pole | 3P2E |
| Model No | BJF375325 |
| Terminal Shape | (Power Side) Dedicated Crimp Terminal |
Type of Product |
Earth Leakage Breaker |
No. of Pole |
3P2E |
Model No |
BJF375325 |
Terminal Shape |
(Power Side) Dedicated Crimp Terminal |
Operating Time |
(At The Time Of Earth Leakage) Within 0.1 Seconds, (At The Time Of Electric Leakage) Within 0.1, (At The Time Of Overvoltage) Within 0.5 |
Phase / Wire Type |
1Φ3W |
Rated Breaking Capacity (kA) |
5 |
Frame (AF) |
75 |
Mass (Kg) |
0.47 |
Type |
Earth leakage breaker |
Rated Voltage (V) |
AC100 / 200 only |
Rated Sensitivity Current (mA) |
30 |
Monotaro ID |
38179601 |
Tightening Torque (Nm) |
3-4 |
Rated Current (A) |
75 |
Country of Origin |
Japan |
Applicable crimp terminal |
CB22-6S (included), CB38-6N |
Earth Leakage Indication |
Mechanical Display |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Import Country |
Direct Import from Japan |
Specifications |
AA neutral wire with open-phase protection (3P2E), (abnormal voltage protection) 130 ± 5V, with OC (overcurrent + earth leakage protection) |

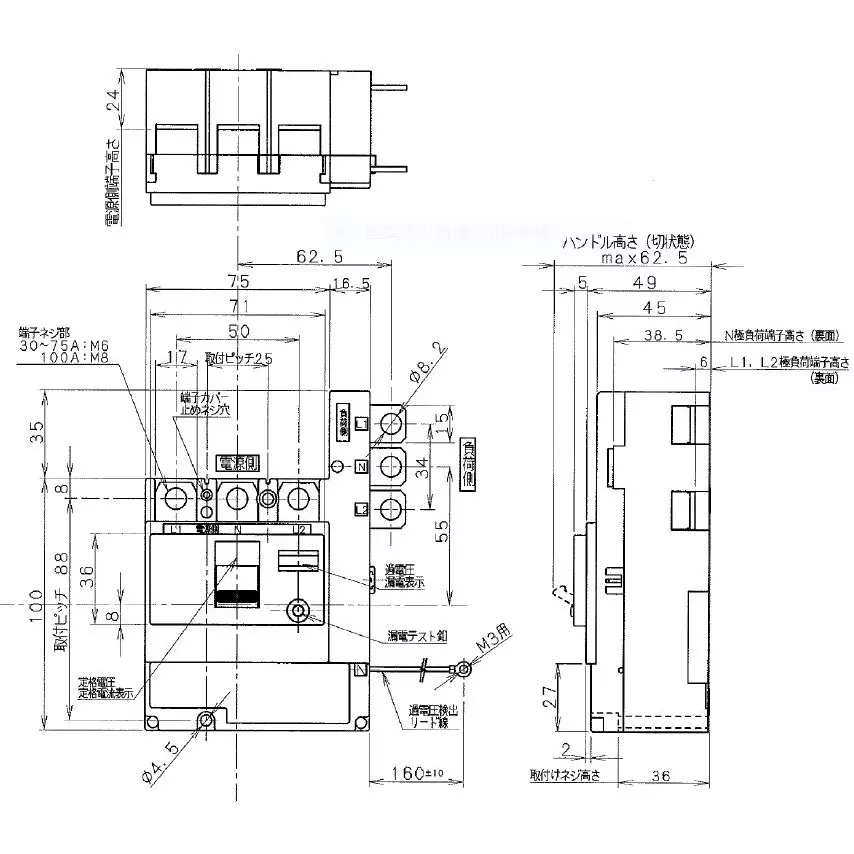

Dimension (mm) |
(H)135x(W)91.5x(D)49 |
Method |
Thermal / Electromagnetic |
