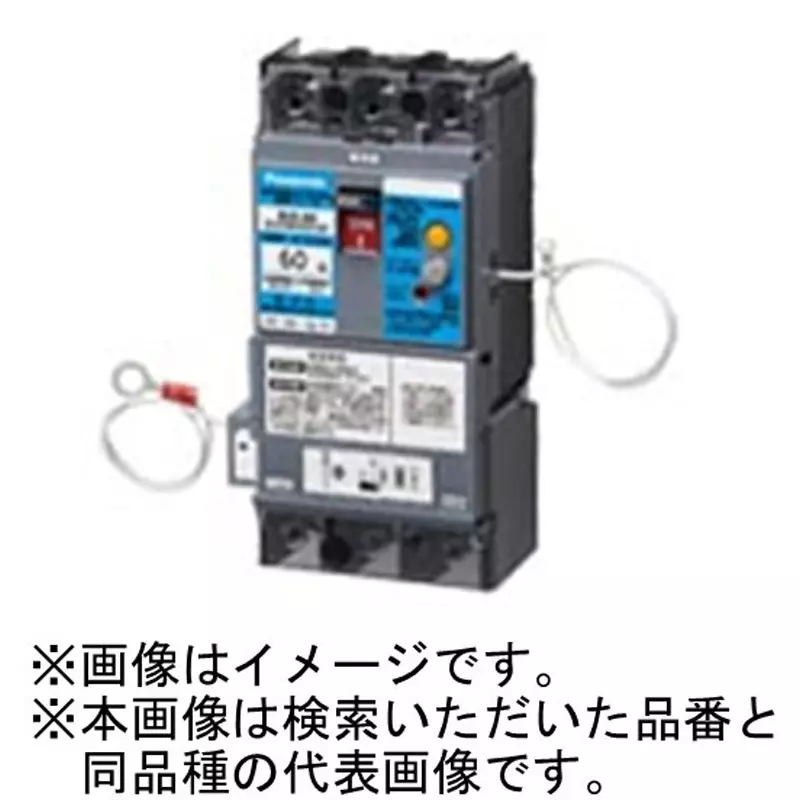

| Type of Product | Earth Leakage Breaker |
| No. of Pole | 3P2E |
| Model No | BJX360325J2K |
| Operating Time | (At The Time Of Electric Leakage) Within 0.1, (At The Time Of Overvoltage) Within 0.5 |
Type of Product |
Earth Leakage Breaker |
No. of Pole |
3P2E |
Model No |
BJX360325J2K |
Operating Time |
(At The Time Of Electric Leakage) Within 0.1, (At The Time Of Overvoltage) Within 0.5 |
Phase / Wire Type |
1Φ3W |
Rated Breaking Capacity (kA) |
5(sym) |
Type |

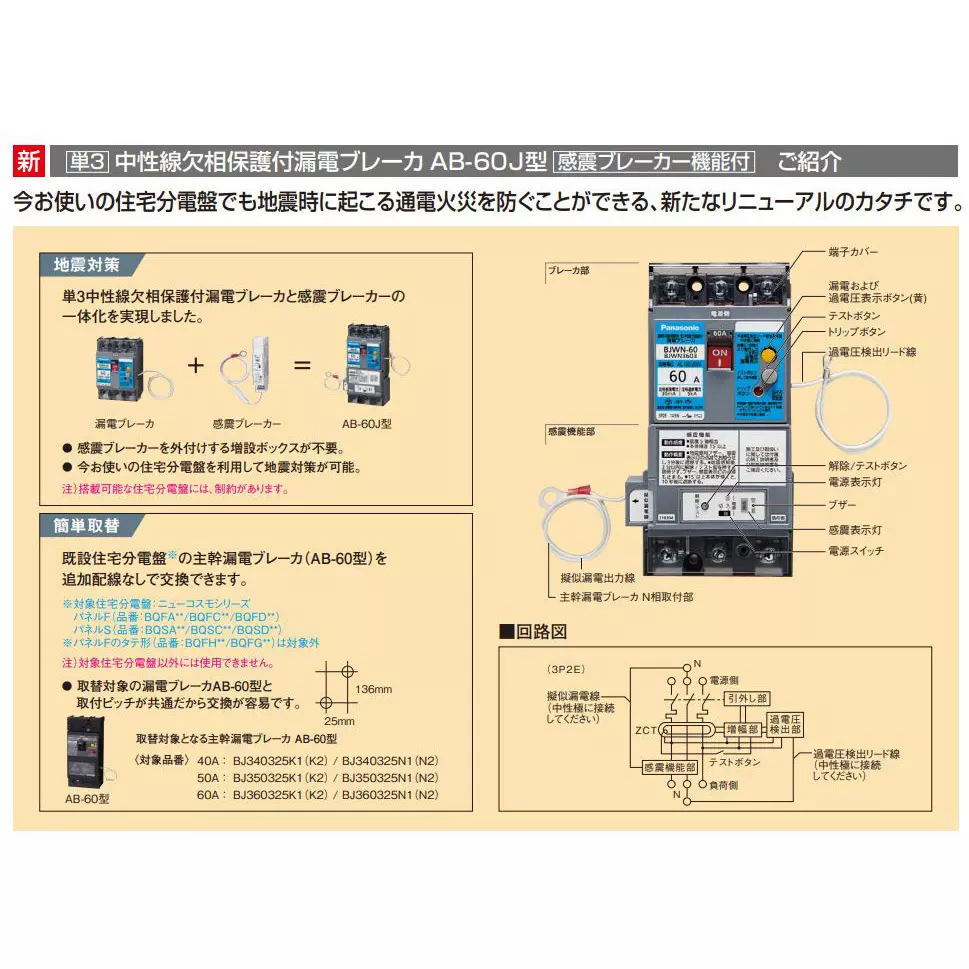

Single-Phase Earth Leakage Breaker With Neutral Phase Loss Protection, Ab-60J Type |
Rated Voltage (V) |
AC100 / 200 only |
Rated Sensitivity Current (mA) |
30 |
Monotaro ID |
79739530 |
Rated Current (A) |
60 |
Country of Origin |
Japan |
Display Type |
(Electric Leakage/Overvoltage) Mechanical Button |
Frame |
60AF (Model: AB-60J) |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Import Country |
Direct Import from Japan |
Method |
(Overcurrent) Electromagnetic Type |
Function |
Earthquake-sensing breaker: included |
Quantity |
One |
