| Type of Product | Earth Leakage Breaker |
| No. of Pole | 3P3E |
| Model No | BJF360315 |
| Terminal Shape | (Power Side) Dedicated Crimp Terminal |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Earth Leakage Breaker |
No. of Pole |
3P3E |
Model No |
BJF360315 |
Terminal Shape |
(Power Side) Dedicated Crimp Terminal |
Operating Time |
(At The Time Of Earth Leakage) Within 0.1 Seconds, (At The Time Of Electric Leakage) Within 0.1, (At The Time Of Overvoltage) Within 0.5 |
Rated Breaking Capacity (kA) |
5 |
Frame (AF) |
75 (with OC) |
Overcurrent Tripper Type |
Thermal / Electromagnetic |
Mass (Kg) |
0.41 |
Type |
ABF-75 |
Rated Voltage (V) |
AC100 / 200 only |
Rated Sensitivity Current (mA) |
30 |
Monotaro ID |
38179486 |
Rated Current (A) |
60 |
Country of Origin |
Japan |
Terminal Screw |
(Power Supply Side) M6 |
Earth Leakage Indication |
Mechanical Display |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Import Country |
Direct Import from Japan |

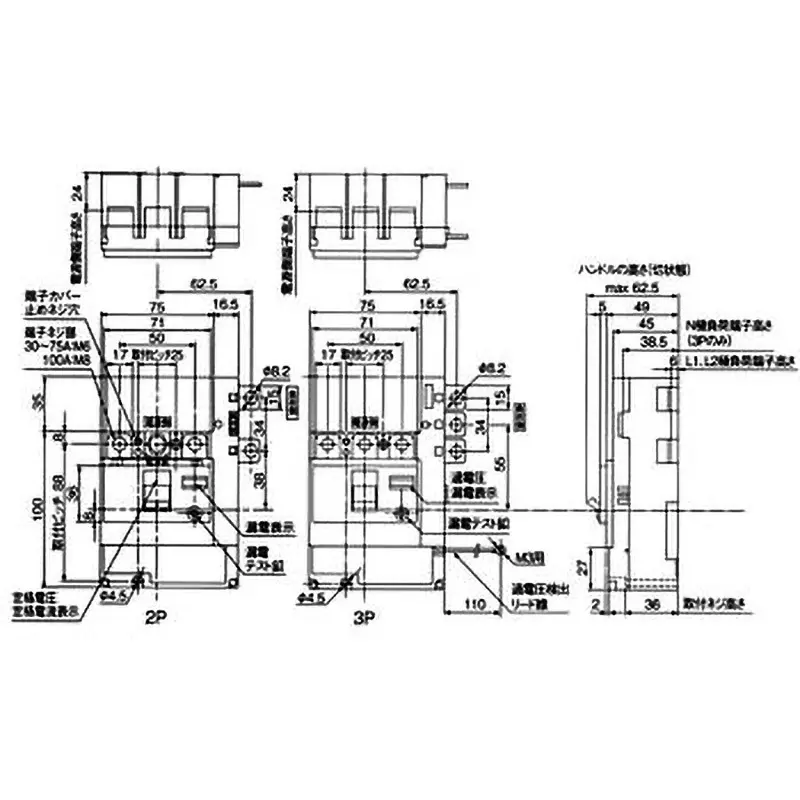

Dimension (mm) |
(H)135x(W)91.5x(D)49 |
