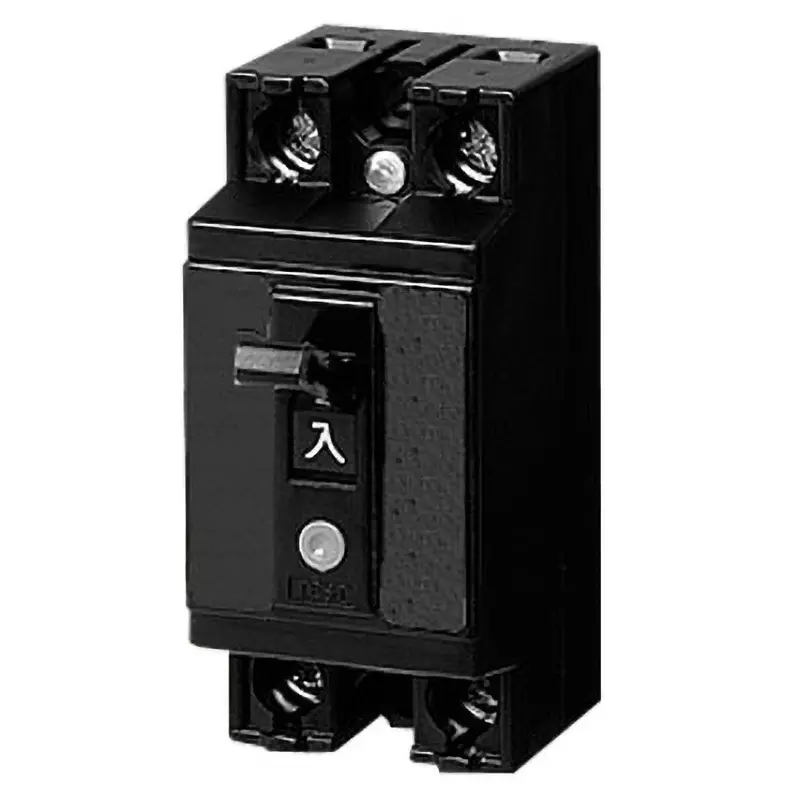

| Type of Product | Compact Earth Leakage Breaker |
| No. of Pole | 2P1E |
| Model No | BJS3021N |
| Terminal Shape | Solderless Terminal, Terminal With Plate |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Compact Earth Leakage Breaker |
No. of Pole |
2P1E |
Model No |
BJS3021N |
Terminal Shape |
Solderless Terminal, Terminal With Plate |
Operating Time |
Within 0.1 Seconds |
Phase / Wire Type |
1Φ2W (Single-Phase Two-Wire Type) |
Rated Breaking Capacity (kA) |
1.5 |
Frame (AF) |
30 |

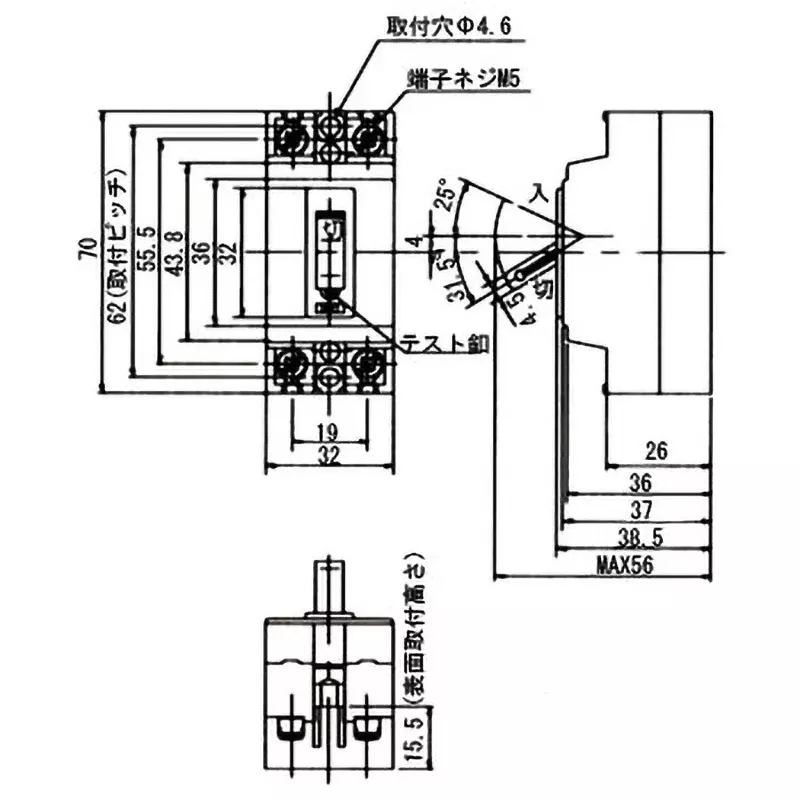

Width (mm) |
32 |
Overcurrent Tripper Type |
Thermal type |
Mass (Kg) |
0.09 |
Height (mm) |
70 |
Type |
AB-1E |
Rated Voltage (V) |
AC100 only |
Rated Sensitivity Current (mA) |
15 |
Protective Function |
Overcurrent, Short Circuit, Earth Leakage |
Monotaro ID |
38181071 |
Tightening Torque (Nm) |
1.6-2.0 |
Length (mm) |
56 (including lever) |
Rated Current (A) |
30 |
Part No |
BJS3021N |
Country of Origin |
Japan |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Import Country |
Direct Import from Japan |
Operation Ambient Temperature (°C) |
-10-50 |
Connectable Stranded Wire (mm²) |
5.5-8 |
