| Type of Product | Earth Leakage Breaker |
| No. of Pole | 2P1E |
| Model No | BJJ23021 |
| Terminal Shape | Solderless terminal (with pad) |
Warranty as per brand
100% Original Products
Secure payments
100% Buyer protection
Top Brands
Type of Product |
Earth Leakage Breaker |
No. of Pole |
2P1E |
Model No |
BJJ23021 |
Terminal Shape |
Solderless terminal (with pad) |
Operating Time |
(At The Time Of Earth Leakage) Within 0.1 Seconds |
Phase / Wire Type |
1Φ2W (Single-Phase Two-Wire Type) |
Rated Breaking Capacity (kA) |
1.5 |
Frame (AF) |
30 |
Mass (Kg) |
0.2 |
Type |
J-1E |
Rated Voltage (V) |
AC100 only |
Rated Sensitivity Current (mA) |
15 |
Protective Function |
With OC |
Monotaro ID |
38179075 |
Tightening Torque (Nm) |
1.6-2 |
Rated Current (A) |
30 |
Country of Origin |
Japan |
Earth Leakage Indication |
Mechanical Button |
Reverse Connection |
Possible |
Display Type |
Overvoltage: Mechanical Button |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Import Country |
Direct Import from Japan |
Specifications |
●JIS compatible type●For use in residential distribution board mains and lighting circuits●Compatible with harmonics (inverters, etc.)/WV2500: 1.25 to <sup>2 mm 2</sup> , VW2501: 2 to 3.5 mm <sup>2</sup> |

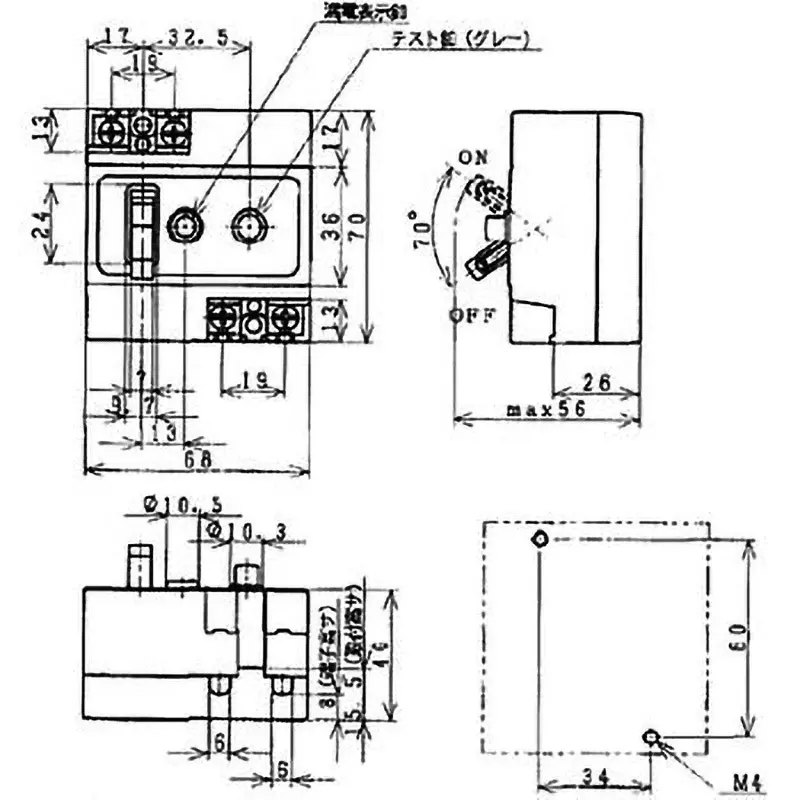

External Dimensions (width x depth x height) (mm) |
68x70x40(56 including handle) |
Options |
Auxiliary switch AX |
Operation Ambient Temperature (°C) |
-10-50 |
