| Type of Product | Earth Leakage Breaker |
| No. of Pole | 3P2E |
| Model No | BJJ325325K |
| Terminal Shape | Neutral pole 2 screws product Solderless terminal (with metal plate) |
Type of Product |
Earth Leakage Breaker |
No. of Pole |
3P2E |
Model No |
BJJ325325K |
Terminal Shape |
Neutral pole 2 screws product Solderless terminal (with metal plate) |
Operating Time |
(At Earth Leakage) Within 0.1 Seconds, (Over Voltage) Within 0.5 Seconds |
Phase / Wire Type |
1Φ3W (Single-Phase Three-Wire Type) |
Rated Breaking Capacity (kA) |
1.5 |
Frame (AF) |
30 (With Oc) |
Mass (Kg) |
0.3 |
Type |
J-32E |
Rated Voltage (V) |
AC100 / 200 only (AA) |
Rated Sensitivity Current (mA) |
30 |
Protective Function |
With OC |
Monotaro ID |
38179181 |
Tightening Torque (Nm) |
1.6-2 |
Rated Current (A) |
25 |
Country of Origin |
Japan |
Earth Leakage Indication |
Mechanical Button |
Reverse Connection |
Possible |
Operating Voltage |
(Overvoltage) 130 ± 5 |
Display Type |
Overvoltage: Mechanical Button |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Import Country |
Direct Import from Japan |
Specifications |
●With single-phase neutral line loss protection, lightning surge current resistant●JIS compatible type●For main residential distribution boards and lighting circuits●WV2500: 1.25 to 2 mm <sup>2</sup> , VW2501: 2 to 3.5 mm <sup>2</sup> |

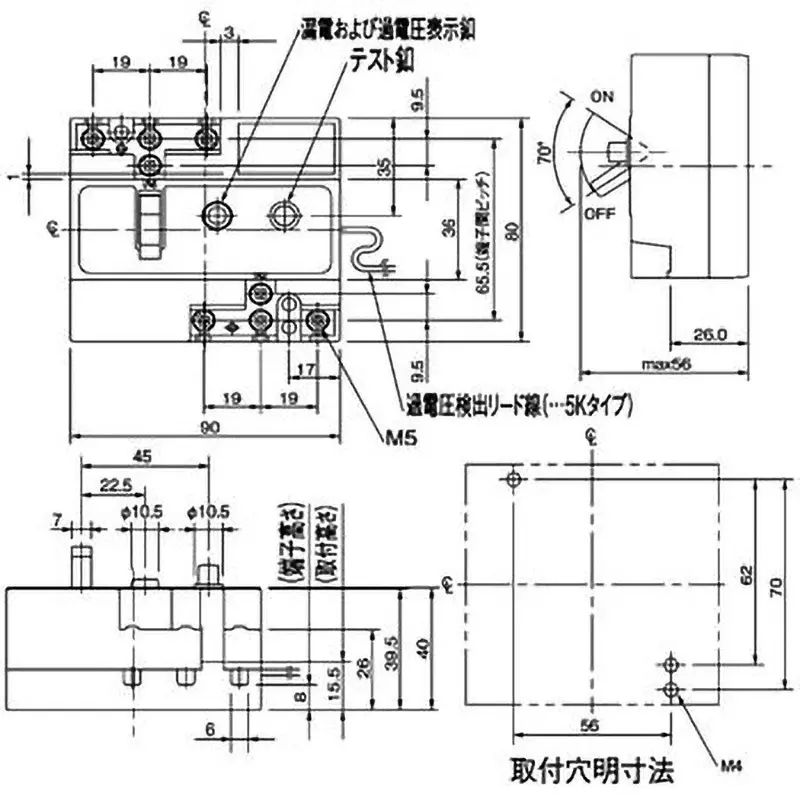

Dimension (mm) |
H80xW90xD40 (56 including handle) |
Operation Ambient Temperature (°C) |
-10-50 |
