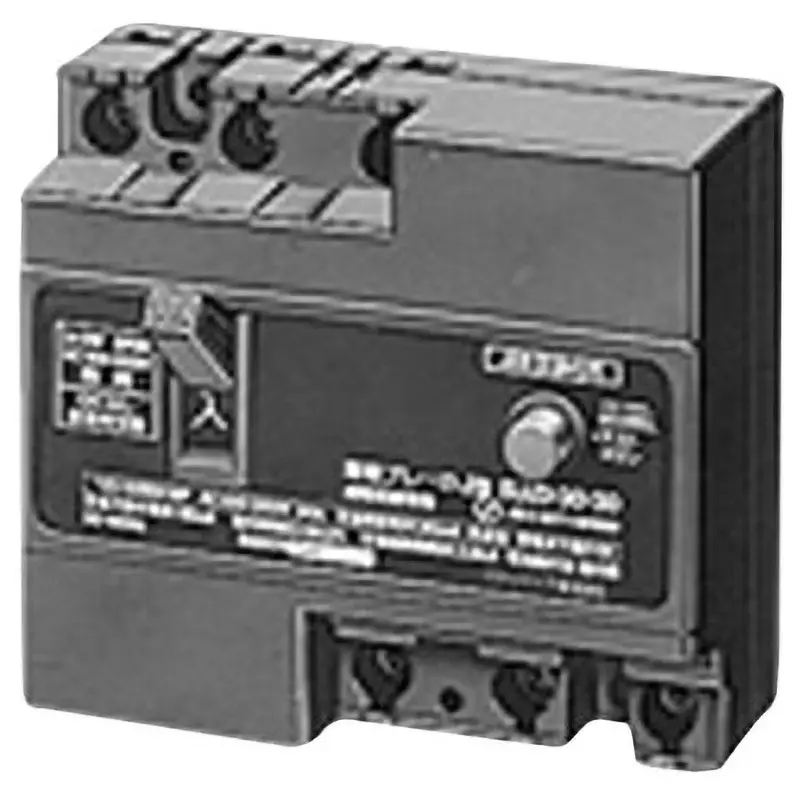

| Type of Product | Earth Leakage Breaker |
| No. of Pole | 3P0E |
| Model No | BJJ33030 |
| Terminal Shape | Solderless terminal (with pad) |
Type of Product |
Earth Leakage Breaker |
No. of Pole |
3P0E |
Model No |
BJJ33030 |
Terminal Shape |
Solderless terminal (with pad) |
Operating Time |
(At The Time Of Earth Leakage) Within 0.1 Seconds |
Phase / Wire Type |
1Φ3W (Single-Phase Three-Wire), 3Φ3W (Three-Phase Three-Wire) |
Rated Breaking Capacity (kA) |
(Rated Short-Time Current) 2.5 |
Frame (AF) |
30 |
Mass (Kg) |
0.3 |
Type |
J-0E |
Rated Voltage (V) |
AC100-200 |
Rated Sensitivity Current (mA) |
30 |
Protective Function |
Without OC |
Monotaro ID |
38179023 |
Tightening Torque (Nm) |
1.6-2 |
Rated Current (A) |
30 |
Country of Origin |
Japan |
Reverse Connection |
Possible |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Import Country |
Direct Import from Japan |
Specifications |
●JIS compatible type●For use in residential distribution board mains and lighting circuits●Compatible with harmonics (inverters, etc.)/WV2500: 1.25 to <sup>2 mm 2</sup> , VW2501: 2 to 3.5 mm <sup>2</sup> |

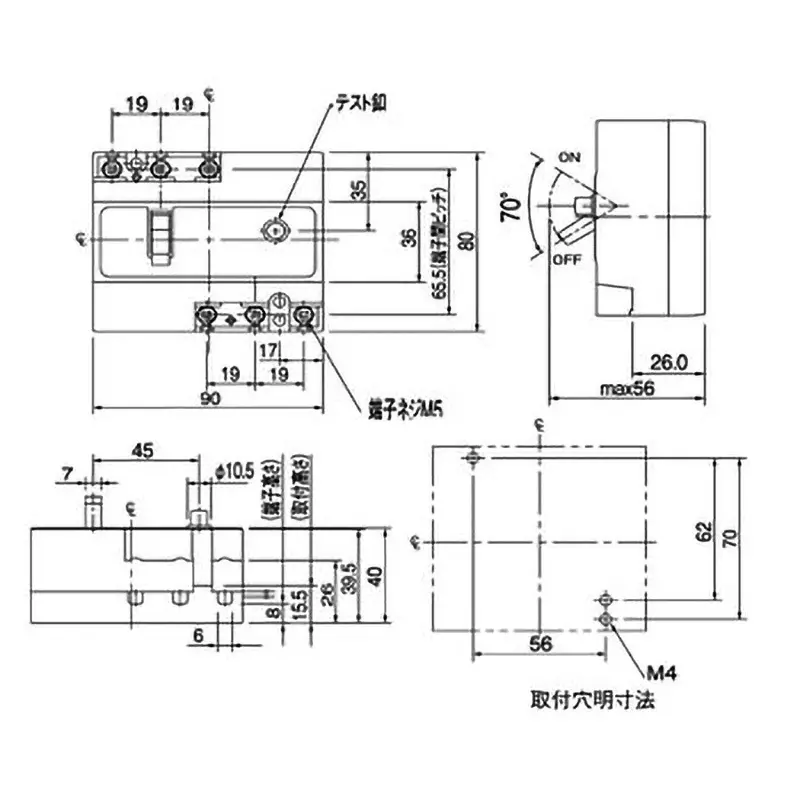

External Dimensions (width x depth x height) (mm) |
90x80x40 (56 including handle) |
Options |
Auxiliary switch AX |
Operation Ambient Temperature (°C) |
-10-50 |
