| Type of Product | Earth Leakage Breaker |
| No. of Pole | 3P3E |
| Model No | BKW33031CK |
| Terminal Shape | Full up terminal |
Type of Product |
Earth Leakage Breaker |
No. of Pole |
3P3E |
Model No |
BKW33031CK |
Terminal Shape |
Full up terminal |
Operating Time |
Within 0.1 Seconds |
Phase / Wire Type |
3Φ3W (three-phase three-wire), 1Φ3W (single-phase three-wire) |
Rated Breaking Capacity (kA) |
2.5(AC200 V)/2.5(AC100V) |
Frame (AF) |
50 |
Overcurrent Tripper Type |
Electromagnetic |
Mass (Kg) |
0.5 |
Type |
BKW-50C |
Rated Voltage (V) |
AC100-200 |
Rated Sensitivity Current (mA) |
30 |
Monotaro ID |
38182557 |
Tightening Torque (Nm) |
2-2.5 |
Rated Current (A) |
30 |
Country of Origin |
Japan |
Terminal Screw |
M5 |
Applicable crimp terminal |
(Nichifu) 5.5-5 |
Connection Type |
Surface type (full-up terminal) |
Earth Leakage Indication |
Mechanical Button |
Name of Manufacturer/Packer/Importer |
Panasonic Corporation |
Import Country |
Direct Import from Japan |
Specifications |
DIN rail mountable |

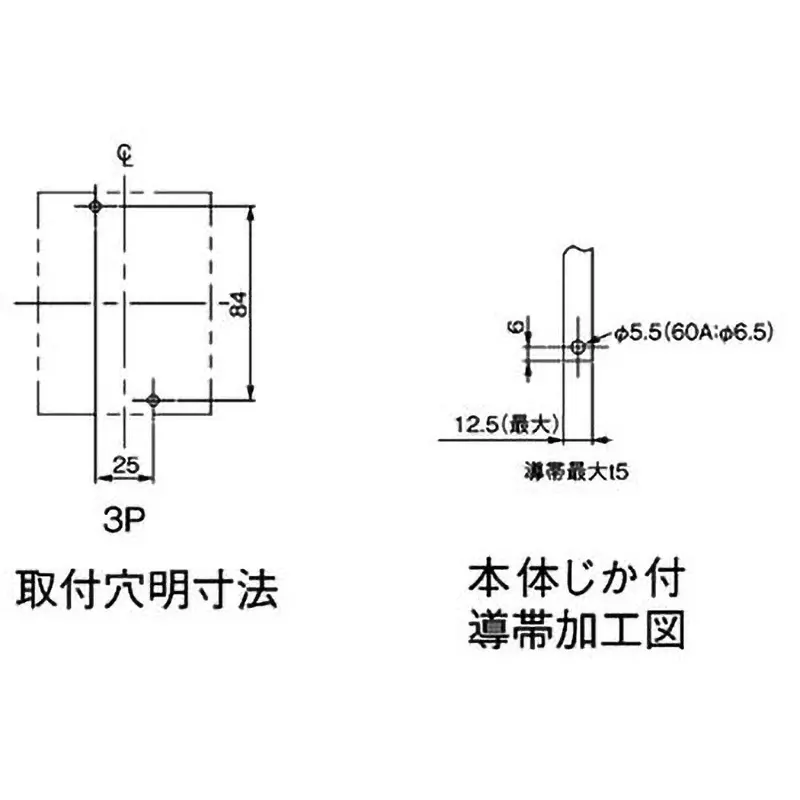

External Dimensions (width x depth x height) (mm) |
75x96x60 (75.6 including handle) |
Operation Ambient Temperature (°C) |
-10-60 |
