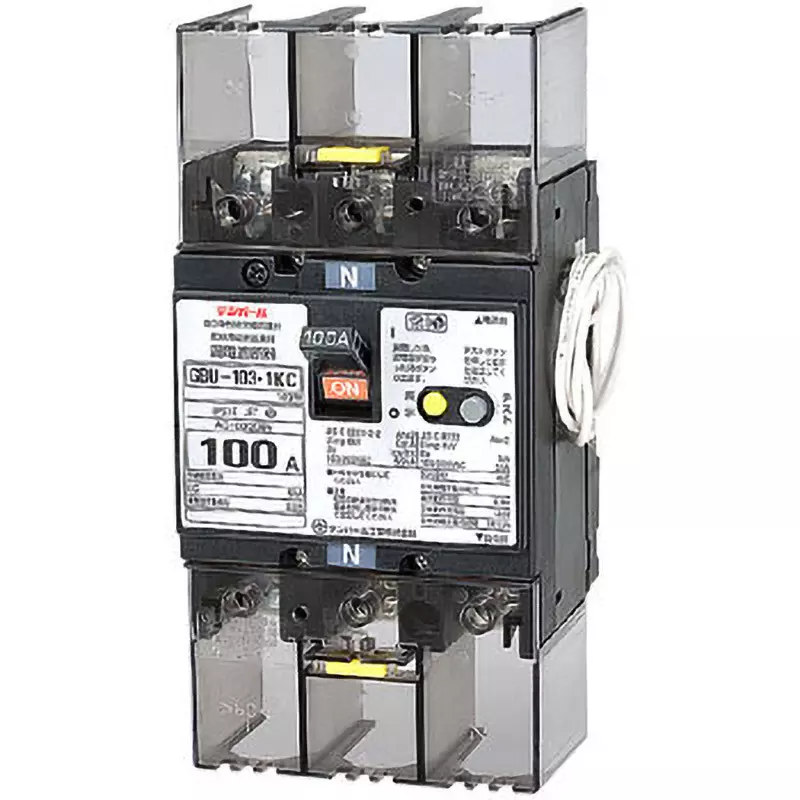

| Type of Product | Earth Leakage Breaker |
| Model No | GBU-103 1KC 100A 30MA |
| Operating Time | (Maximum) 0.1 seconds |
| Rated Breaking Capacity (kA) | [Icu/lcs](JIS C 8201-2-2 Ann2, 100/200V)5/2, [Icn](JIS C 8222 Ann2, 100/200V)5 |
Type of Product |
Earth Leakage Breaker |
Model No |
GBU-103 1KC 100A 30MA |
Operating Time |
(Maximum) 0.1 seconds |
Rated Breaking Capacity (kA) |
[Icu/lcs](JIS C 8201-2-2 Ann2, 100/200V)5/2, [Icn](JIS C 8222 Ann2, 100/200V)5 |
Overcurrent Tripper Type |
Thermodynamic electromagnetic |
Mass (Kg) |
0.58 |
Type |
Earth leakage breaker |
Rated Voltage (V) |
AC 100/200 |
Rated Sensitivity Current (mA) |
30 |
Monotaro ID |
39210166 |
Rated Current (A) |
100 |
Terminal Type |
Crimp terminal method (crimp terminal included) |
Country of Origin |
Japan |
Connection Type |
Surface Type |
Earth Leakage Indication |
Included |
Reverse Connection |
Impossible |
Name of Manufacturer/Packer/Importer |
Tenpearl Industries Co., Ltd. |
Import Country |
Direct Import from Japan |
Rated Impulse Withstand Voltage (kV) |
6 |
Dimension B (Φmm) |
75 |
Dimension A (Φmm) |
98(156) |
Dimension d |
79 mm |
Dimension C |
60 mm |
No. of Poles / Elements |
3P2E |
Terminal |
M8 |
Connectable Wire (mm2) |
(Maximum) 38 |
