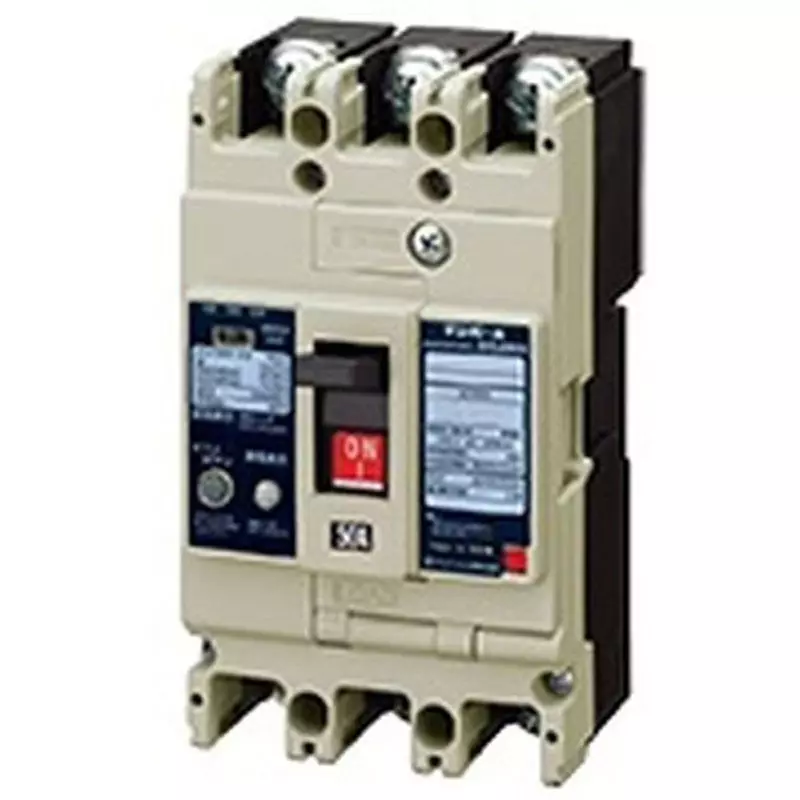

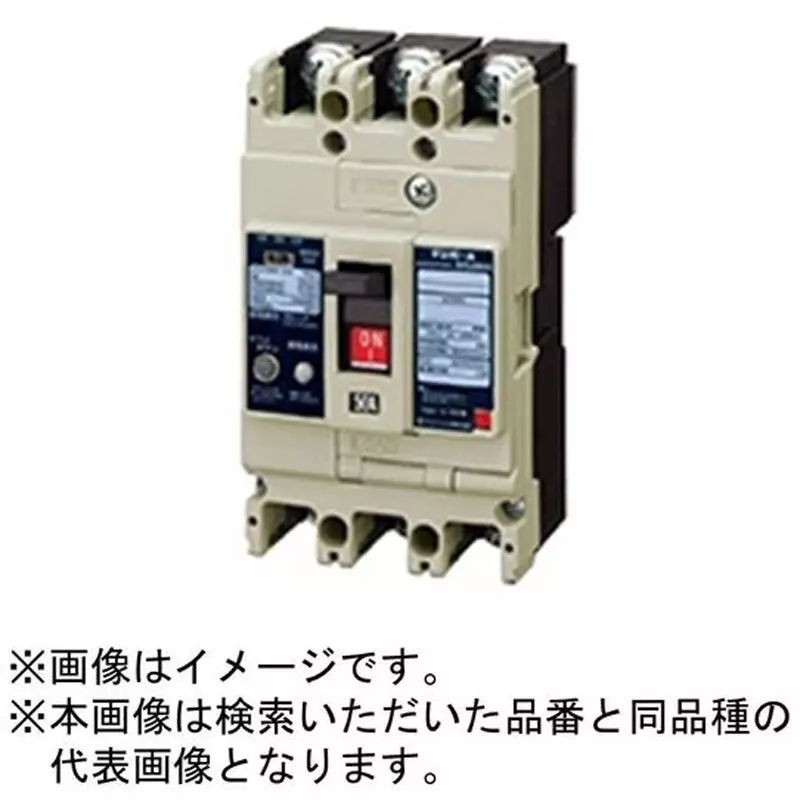

| Type of Product | Earth Leakage Circuit Breaker |
| Model No | 63FH30W2 |
| Frame (AF) | 60 |
| Overcurrent Tripper Type | Thermodynamic electromagnetic |
Type of Product |
Earth Leakage Circuit Breaker |
Model No |
63FH30W2 |
Frame (AF) |
60 |
Overcurrent Tripper Type |
Thermodynamic electromagnetic |
Mass (Kg) |
0.66 |
Type |
Earth leakage breaker |
Rated Sensitivity Current (mA) |
100/200/500 |
Monotaro ID |
73006757 |
Rated Current (A) |
30 |
Suitable For |
[Compatible Accessories: Handle Lock, Cap Type (LC)] (Sold Separately) LC-4J, [Compatible Accessories: Handle Lock, Locking Type (HL)] (Sold Separately) HL-4J, [Compatible Accessories: External Operating Handle (HA)] (Sold Separately) HM-S14, [Compatible Accessories: Barrier (BA)] Power Supply Side Attached (CMF-0487) (The included power supply side phase barrier must be used in 400V class applications.), [Compatible Accessories: Terminal Cover, Surface Mount Type (TMC)] (Sold Separately) TMC-1 |
Country of Origin |
Japan |
Applicable crimp terminal |
[Nominal cross-sectional area <sup>2mm��,</sup> allowable current (600V IV wire) 27A, wire size range 1.04 to 2.63mm�� <sup>]</sup> 2-5, [Nominal cross-sectional area <sup>5.5mm��,</sup> allowable current (600V IV wire) 49A, wire size range 2.63 to 6.64mm�� <sup>]</sup> 5.5-5, [Nominal cross-sectional area <sup>8mm��,</sup> allowable current (600V IV wire) 61A, wire size range 6.64 to <sup>10.52mm��</sup> ] 8-5, [Nominal cross-sectional area <sup>14mm��,</sup> allowable current (600V IV wire) 88A, wire size range 10.52 to <sup>16.78mm��</sup> ] 14-5 |
Connection Type |
Surface Type |
Rated operating voltage (AC V) |
100���440 |
Earth Leakage Indication |
Included |
Reverse Connection |
Impossible |
Included Components |
Mounting screws (M4 x 55) x 2, terminal cover phase barrier x 2, terminal screws (M5 x 14) x 6 |
Name of Manufacturer/Packer/Importer |
Tenpearl Industries Co., Ltd. |
Import Country |
Direct Import from Japan |
Rated Impulse Withstand Voltage (kV) |
6(Uimp) |
No. of Poles / Elements |
3P3E |
Terminal |
Wire clamping method (crimp terminals can be used) M5 |
Connectable Wire (mm2) |
Up to 38 |
Name |
F Series (High Breaking Capacity) |
External Dimensions / Height (mm) |
60, 86 (height to the handle) |
