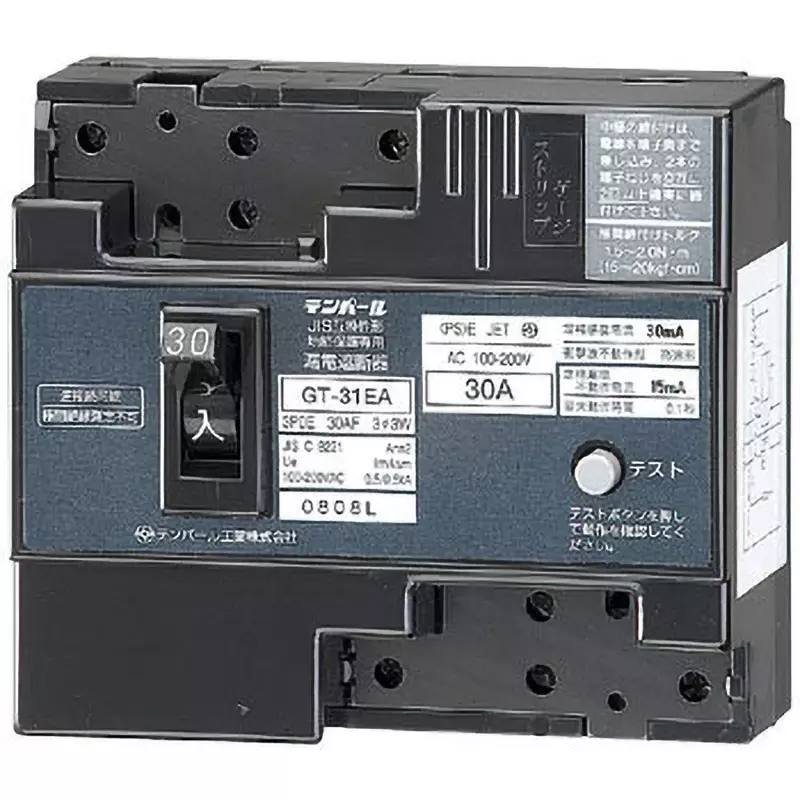

| Type of Product | Earth Leakage Breaker |
| Model No | GT-31EA 30A 15MA |
| Rated Breaking Capacity (kA) | (AC 100 V) 0.5/0.5, (AC 200 V) 0.5/0.5 |
| Frame (AF) | 30 |
Type of Product |
Earth Leakage Breaker |
Model No |
GT-31EA 30A 15MA |
Rated Breaking Capacity (kA) |
(AC 100 V) 0.5/0.5, (AC 200 V) 0.5/0.5 |
Frame (AF) |
30 |
Mass (Kg) |
0.21 |
Rated Voltage (V) |
AC 100-AC 200 |
Rated Sensitivity Current (mA) |
15 |
Monotaro ID |
39211286 |
Rated Current (A) |
30 |
Terminal Type |
Solderless terminal type (with washer) |
Country of Origin |
Japan |
Connection Type |
Surface Type |
Reverse Connection |
Possible |
Name of Manufacturer/Packer/Importer |
Tenpearl Industries Co., Ltd. |
Import Country |
Direct Import from Japan |
Dimension (mm) |
H80xW90xD57 (including handle) |
Dimension B (Φmm) |
90 |
Dimension A (Φmm) |
80 |
Dimension d |
57 mm |
Dimension C |
40 mm |
No. of Poles / Elements |
3P0E |
Connectable Wire (mm2) |
(Maximum) 8 |
