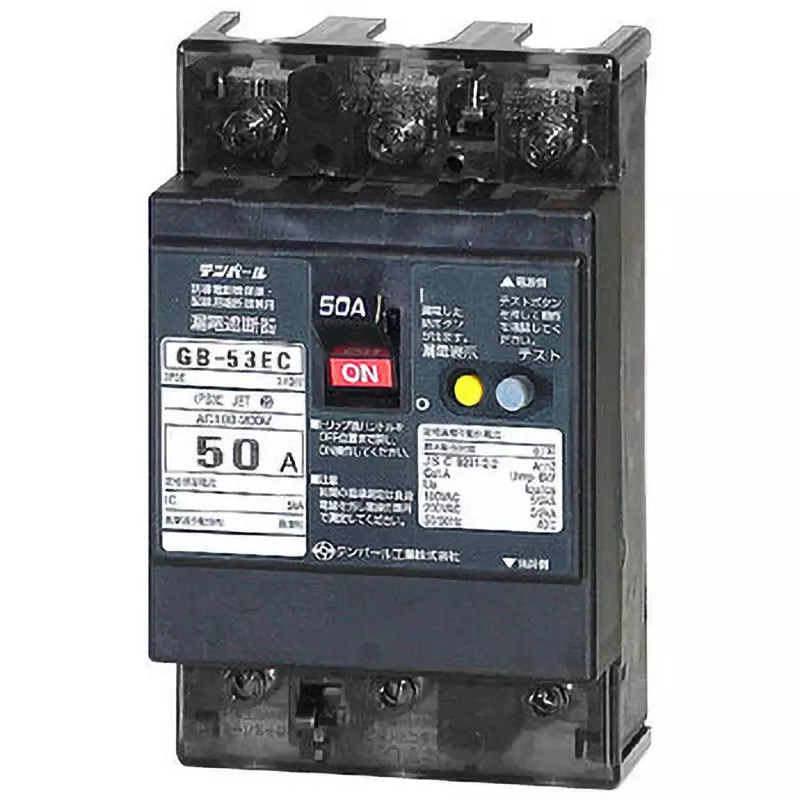

| Type of Product | Earth Leakage Breaker |
| Model No | GB-53EC 50A 30MA AL |
| Rated Breaking Capacity (kA) | (AC 100 V) 5/2, (AC 200 V) 5/2 |
| Frame (AF) | 50 |
Type of Product |
Earth Leakage Breaker |
Model No |
GB-53EC 50A 30MA AL |
Rated Breaking Capacity (kA) |
(AC 100 V) 5/2, (AC 200 V) 5/2 |
Frame (AF) |
50 |
Overcurrent Tripper Type |
Thermodynamic electromagnetic |
Mass (Kg) |
0.35 |
Type |
E series Economic type |
Rated Voltage (V) |
AC 100-AC 200 |
Rated Sensitivity Current (mA) |
30 |
Monotaro ID |
39207944 |
Rated Current (A) |
50 |
Terminal Type |
Wire clamp method (crimp terminals can be used) |
Country of Origin |
Japan |
Connection Type |
Surface Type |
Reverse Connection |
Impossible |
Name of Manufacturer/Packer/Importer |
Tenpearl Industries Co., Ltd. |
Import Country |
Direct Import from Japan |
Dimension (mm) |
H105xW70xD67.5(including handle) |
Rated Impulse Withstand Voltage (kV) |
6 |
Dimension B (Φmm) |
70 |
Dimension A (Φmm) |
105(115) |
Dimension d |
67.5 mm |
Dimension C |
49 mm |
No. of Poles / Elements |
3P3E |
Connectable Wire (mm2) |
(Maximum) 22 |
