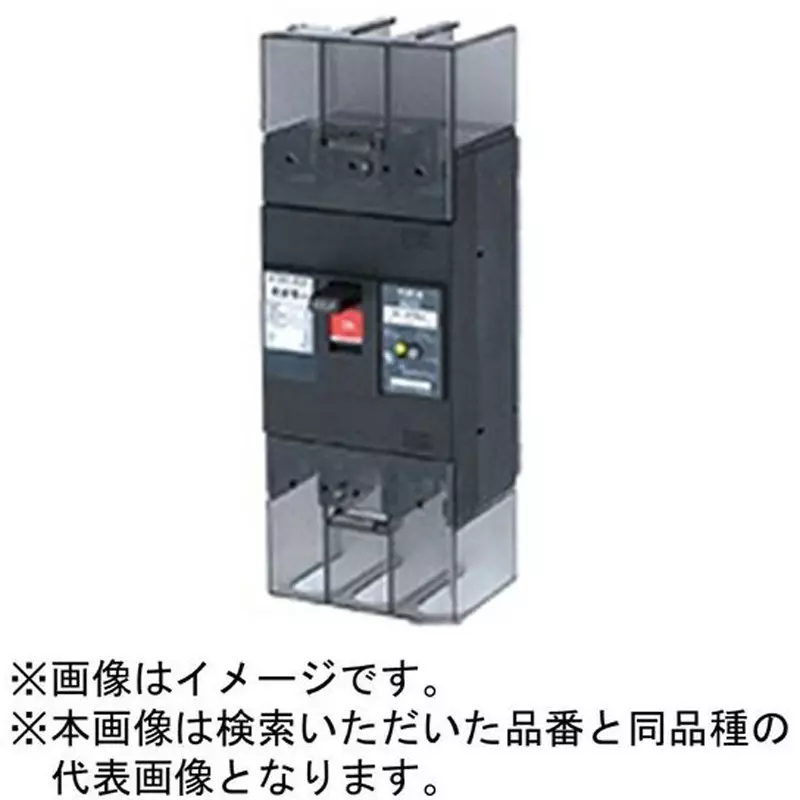

| Type of Product | Earth Leakage Circuit Breaker |
| Model No | 223EA20W2LP |
| Overcurrent Tripper Type | Thermodynamic electromagnetic |
| Mass (Kg) | 1.6 |
Type of Product |
Earth Leakage Circuit Breaker |
Model No |
223EA20W2LP |
Overcurrent Tripper Type |
Thermodynamic electromagnetic |
Mass (Kg) |
1.6 |
Type |
Earth leakage breaker |
Rated Sensitivity Current (mA) |
100/200/500 |
Monotaro ID |
73005366 |
Rated Current (A) |
200 |
Suitable For |
[Compatible accessory: Barrier (BA)] (Sold separately) PHS-1T, [Compatible accessory: Terminal cover, surface type (TMC)] Included (TMC-253EA) (When using crimp terminal CB150-8, the included terminal cover cannot be installed. Please use a phase barrier.) |
Country of Origin |
Japan |
Attached Device |
(AL) Alarm switch |
Connection Type |
Surface Type |
Earth Leakage Indication |
Included |
Reverse Connection |
Possible (This is a "reverse connection possible" type as defined in JEAC Internal Wiring Regulations Document 3-5-8. For grid-connected applications such as solar power generation systems, connect the commercial power supply side to the power source side and the power generation system side to the load side. Regardless of the application, do not connect the commercial power supply to the load side.) |
Included Components |
Mounting screws (M4 x 60) x 2, wood screws (4 x 60) x 2, terminal covers x 2, crimp terminals, sealing plates x 2, terminal screws (M8 x 20) x 6 |
Name of Manufacturer/Packer/Importer |
Tenpearl Industries Co., Ltd. |
Import Country |
Direct Import from Japan |
Specifications |
For motor protection |
Rated Impulse Withstand Voltage (kV) |
6(Uimp) |
No. of Poles / Elements |
3P3E |
Terminal |
Crimp terminal type (crimp terminals included) M8 |
Connectable Wire (mm2) |
Up to 150 |
Name |
E Series (Economy Type) |
Remark |
This device is resistant to harmonics (such as inverters) and is immune to lightning impulses. |
Inertia Non-Operation Time |
0.15 sec |
